Basic Info.
Transmission
Real Wheel Driven
Usage
Game, Toy, Gift, Teaching
Engine type
173MN, 4-STROKE,SINGLE CYLINDER,WATER COOLED
Displacement (Cc)
275.6 CC
Output Max. Power (Kw)
13KW@7500 RPM
Max. Torque
22N.m@5000 RPM
Bore X Stroke (mm)
2.85 x 2.63 INCHES (72.5x66.8MM)
Starting System
Electric Start
Transport Package
Iron Frame and Carton for Go Cart
Specification
230*120*66 cm
Production Capacity
12000 Pieces/Year
Packaging & Delivery
Package Size
231.00cm * 120.00cm * 66.00cm
Package Gross Weight
350.000kg
Product Description

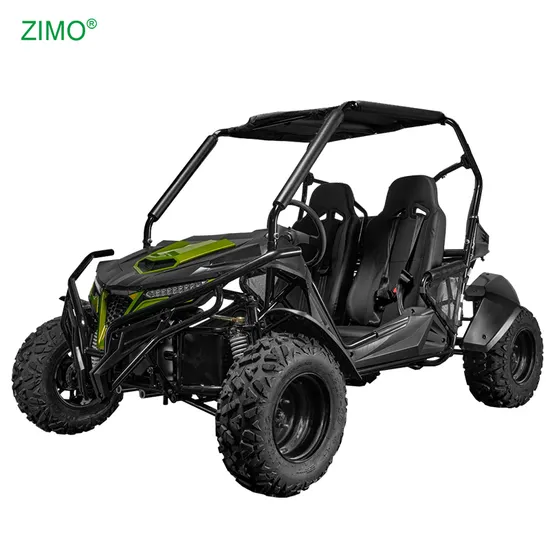

Go Kart ZIMO 275.6cc Off Road Buggy K7 ZIMO Go karts are the global patented products, both appearance and structural inverntion patent. Unique stylish vehicle design, special
safe structural design make driving experience more exciting and safer.With reverse as standard, engines technology is mature and reliable,
parts are readily available everywhere. Equipped with more spacious cockpit, play drift freely, throw slide, never roll over. Could drive through
river, crossing with water 20cm deep in it and run it over.
| Specification |
| Engine type | 173mn,4-Stroke,Single,Cylinder | Clutch | AUTOMATIC CTV |
| Displacement | 275.6 CC | Gears | D-N-R |
| Output Max | 13KW@7500 RPM | Suspension, F / R | DUAL A-ARM |
| Max torque | 22N.m@5000 RPM | Driving wheel | DUAL WHEEL DRIVE |
| Bore x stroke | 2.85 x 2.63 INCHES | Brakes, F / R | DISC |
| Max speed | 60KM/H | Tires, F / R | 22*7-10 /22*10-10 |
| Climbing ability | 12° | Fuel capacity | 2.6 GAS |
| Ignition | C.D.I | Weight, G.W. / N.W. | 335KGS/280 KGS |
| Starting system | ELECTRIC START | Max load | 500 LBS |
| Battery | YTX12-BS 12V10Ah | Wheelbase | 1800 MM |
| Carburetor Item | Y28V1L | OA L x W x H | 2340*1400*1480 MM |
| Engine oil | SAE 10W/40 | Height to seat | 470 MM |
| Shipping information | 12pieces/20'GP,40pieces/40'HQ | Min.ground clearance | 150 MM |
| Package Size | 2300*1200*660mm | Pedal to seat back | 920-1060 MM |
>>
