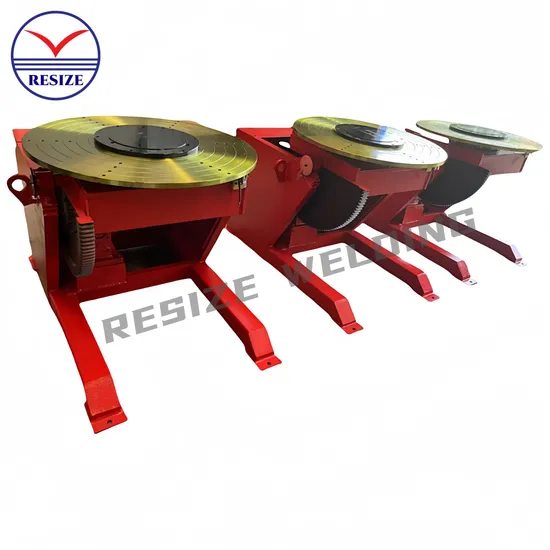

Welding Positioner 600kg Rotary Table /Tube Pipe Flange Welding Positioner

Product Description

Product Description
Welding Positioner & Rotary Table/Turning Table
The welding positioner&turning table is a special welding auxiliary equipment, which is suitable for the welding displacement of rotary work to obtain the ideal machining position and welding speed. It can be used with the operator and welding machine to form an automatic welding center, and can also be used for the displacement of the workpiece during manual work. Table rotation (turning table) using frequency converter stepless speed regulation, speed regulation accuracy is high. The remote control box can realize the remote operation of the workbench, and can also be connected with the control system of the operator and the welding machine to achieve linkage operation.
The welding positioner&turning table is generally composed of the rotary mechanism of the workbench and the turning mechanism. Through the lifting, turning and turning of the workbench, the workpiece fixed on the workbench can reach the required welding and assembly Angle, and the workbench can be converted to variable frequency stepless speed regulation to obtain satisfactory welding speed.
Parameters

Model	Loading capacity (kg)	Rotating speed (rpm)	Tilting speed (rpm)	Tilting Angle (°)	Worktable diameter (mm)	Rotation motor Power (kw)	Turnover motor(kw)
HBJ-01	100	0.4-4	manual	0-90	400	0.18	/
HBJ-03	300	0.1-1	manual	0-90	600	0.18	/
HBJ-03	300	0.1-1	1	0-90	600	0.18	0.18
HBJ-06	600	0.09-0.9	0.42	0-90	1000	0.75	0.75
HBJ-12	1200	0.05-0.5	0.4	0-120	1200	1.1	1.1
HBJ-30	3000	0.05-0.5	0.23	0-135	1400	1.1	2.2
HBJ-50	5000	0.05-0.5	0.2	0-135	1500	1.5	3
HBJ-100	10000	0.05-0.5	0.2	0-135	2000	3	4
HBJ-150	15000	0.04-0.4	0.15	0-135	2200	4	7.5
HBJ-200	20000	0.04-0.4	0.15	-135	2500	5.5	11
HBJ-300	30000	0.03-0.3	0.15	-135	3000	5.5	15
HBJ-500	50000	0.03-0.3	0.06	-135	4000	11	18.5
Speed type	Ac frequency coversion stepless speed regulation (Infinitely variable turning speed)
Other model	Customized according to order

Abut us:
Resize welding machinery is funded as Wuxi Yuanpeng Machinery in 2003, situated at the beautiful scenic Tai Lake -a land of plenty in City Wuxi, with more than 20 years experience in welding machinery manufacturing and solution providing. We are specially engaged in the production of equipments such as automatic welding center, turning roller, welding rotator, welding positioner, laser processing equipments etc.

---
