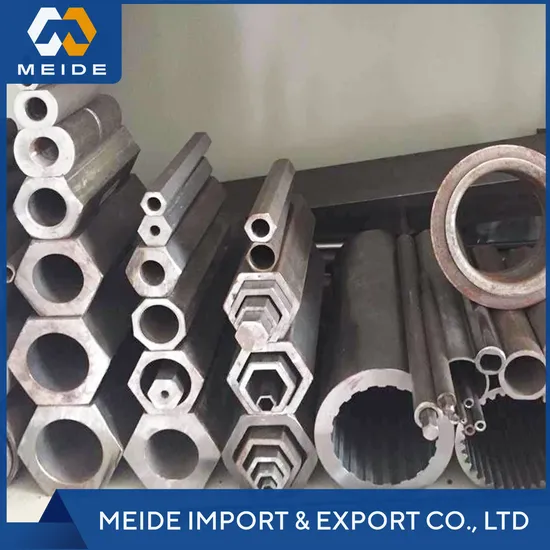

Triangular Hexagonal Lemon Rectangular Tube Pto Power Output Drive Shaft Special-Shaped Gear Steel Tube Agricultural Machinery Tube Steel Pipes

Product Description

Introduce It is an economic cross-section steel pipe. This includes cross-sectional contours that are non circular, of equal wall thickness, of varying wall thickness, of varying diameter and wall thickness along the length direction, and of symmetrical and asymmetric cross-sections. Such as square, rectangular, conical, trapezoidal, spiral, etc. Specially shaped steel pipes are more suitable for the unique usage conditions, saving metal and improving labor productivity in component manufacturing. It is widely used in aviation, automobiles, shipbuilding, mining machinery, agricultural machinery, construction, light textile, and boiler manufacturing. The methods for producing shaped pipes include cold drawing, electric welding, extrusion, hot rolling, etc. Among them, the cold drawing method has been widely used.
Chemical composition

Grades	C	Si	Mn	P	S	Cr	Mo	Cu	Ni
GCr15/52100	0.95-1.05	0.15-0.35	0.2-0.4	≤0.027	≤0.02	1.3-1.65	≤0.1	≤0.25	≤0.3
GCr15SiMn	0.95-1.05	0.45-0.75	0.95-1.25	≤0.025	≤0.025	1.4-1.65	≤0.1	≤0.25	≤0.3
100Cr6	0.95-1.05	0.15-0.35	0.25-0.45	≤0.025	≤0.025	1.4-1.65	≤0.08	≤0.25	≤0.3
440C	0.9-1.0	0.80	0.80	≤0.035	≤0.030	16-18	≤0.75	≤0.25	≤0.60
100CrMn6	1.05	0.75	1.25	0.025	0.025	1.65	0.1	0.25	0.3

Product Description

Production Range	Outer Diameter: 10-1020mm (0.4 inch - 40.16inch)
	Wall Thickness:1-20mm 1-200mm (0.04 inch - 7.89 inch)
Material / Grade	Carbon Steel: GB/T 3094: 10#, 20#, 35#, 45#, 55#, Q235B, Q235C, CF53, A105 ASTM A519: 1010, 1020, 1026, 1035, 1045, 1050 DIN17121/EN 10297-1, DIN1629/DIN2391/EN 10305-1: C10/CK10, C22/CK22, C35/CK35, C45/CK45, CF53 JIS3441/JIS3444/JIS3445: STKM11A, STKM12A/STKM12B/STKM12C, STKM13A/STKM13B/STKM13C JIS G4051: S10C, S20C, S25C, S35C, S45C, S55C
	Alloy Steel: GB/T 3094: 16Mn(Q345B), 20Cr, 40Cr, 15CrMo, 20CrMo, 28CrMo, 30CrMo, 35CrMo, 42CrMo, 20CrMnTi, 40MnMoV, 20Mn2, ZF6, 16MnCr5, 20MnCr5, 38Mn2V, 09CrCuSb(ND) ASTM A519: 5120, 5140, 4130, 4135, 4140 DIN17121/EN 10297-1, DIN1629/DIN2391/EN 10305-1: ST52, EN10084-1998 20Cr4, 41Cr4, 15CrMo4, 25CrMo4, 35CrMo4, 42CrMo4, 16MnCr5 JIS3441/JIS3444/JIS3445: SCM432/SCRRM3, SCM4 JIS G4053: JIS SCr420, JIS SCr440, SCM415, SCM420
	stainless steel: 201 202 301 304 304L 304H 309 309S 310 310S 316 316L 316Ti 321 317 317L 321 329 347 347H 409L 410 410S 420 420JI 420J2 430 431 434 436L 439 441 443 444 S20100, S20200, S30100, S30400, S30403, S30908, S31008, S31600, S31635, SUS304HTB, SUS304LTB,SUS309TB,SUS309STB,SUS310TB,SUS310STB,SUS316TB,SUS316HTB, SUS316HTB, SUS316LTB,SUS316TiTB,SUS317TB,SUS317LTB,SUS836LTB,SUS890LTB,SUS321TB, SUS409LTB, SUS410TB,SUS410TiTB,SUS430TB,SUS430LXTB,SUS430JL1TB,SUS436LTB
Tolerance	Can be customized according to customer's requirements
Technique	Cold Drawn / Cold Rolled
Shape	Triangle, Hexagon, Square, Rectangle, Octagon, Lemon Pipe and Others can be customized
Further Processing for Steel Tubes	Cutting, Chamfer, Threading, Inner diameter or Outer Diameter Lathe, Surface Shot Blasting, Laser Marking

Application Pipeline transportation, boiler pipes, hydraulic/automotive pipes, oil/natural gas drilling, food/beverage/dairy products, mechanical industry, chemical industry, mining, construction and decoration, special applications
FAQ 1. Who are we?
Our headquarter is located in Shandong, China. Since 2022, we have sold to North America (60.00%), Western Europe (14.00%) and South America (6.00%). There are about 11-50 people in our office.
2. How do we guarantee quality?
Always provide pre-production samples before mass production;
Always carry out final inspection before shipment;
3. What can you buy from us?
Copper, aluminum, die steel, titanium, customized machine parts
4. Why should you buy from us instead of other suppliers?
The company has 25 years of production experience. It has advanced precision production equipment, modern large warehouse, 200000 tons of inventory goods and a number of long-term stable cooperative customers.
5. What services can we provide?
Accepted delivery conditions: FOB, CFR, CIF, EXW
Accepted payment currency: US dollar, Euro, Japanese yen, Canadian dollar, Australian dollar, Hong Kong dollar, British pound, RMB, Swiss franc;
Accepted payment type: T/T, L/C, D/P D/A, PayPal;
Optional ports: Tianjin, Shanghai, Guangzhou;
Spoken: English, Chinese
6. How can we get your price?
A. We need the following information to quote for you:
1). Product Name
2). standard
3). Material grade (chemical composition)
4). dimension
5). amount
6). Special part drawin

---
