US$50,000.00-115,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Carrying Capacity
Middle-Level
Certification
CE, ISO 9001
Size of Platform
1.2*0.8*1.1m
Rotation of Work Cage
180°
Production Capacity
100units/Month
Product Description

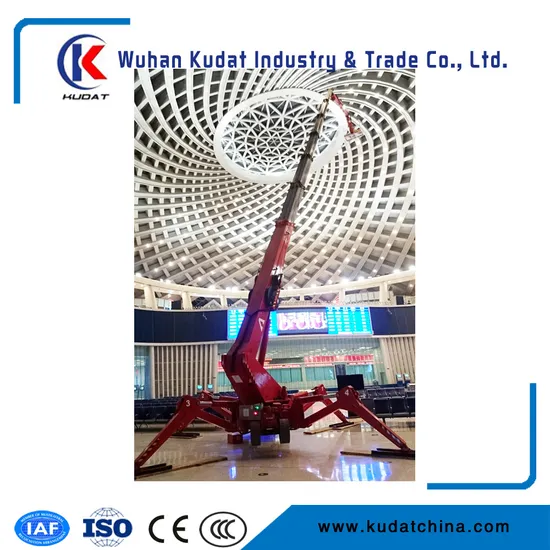

KD-R36 Main Specification:
1.Technical data
| Type | KD-R36 |
| working height (m) | 36.00 |
| Platform height (m) | 34.00 |
| Safe load (kg) | 200 |
| Size of platform (m) | 1.2×0.8×1.1 |
| Outreach (m) | 14.30 |
| Rotation of jib | 180° |
| Rotation of work cage | 180° |
| Turntable Rotation | 360° non continuous |
| Overall length (m) | 8.47 |
| Overall width (m) | 0.92 |
| Overall height (m) | 2.00 |
| Total weight (kg) | 7380 |
| Speed (km/h) | 0-1.5 |
| Climbing | 20% |
| Power | 15KW Diesel engine + 2.2KW electric motor |
2. Specification
-Made of high strength steel, and the European production of hydraulic, control, parts;
-Pipeline all the built-in, to avoid the sun and rain or foreign objects tangled;
-Shape lightweight, low pressure rubber tracks on the ground, can travel, work on any ground;
-Outrigger separately controlled to bypass obstacles in a limited space work;
-Reliable torque control to ensure that the vehicle will not roll;
-Wired remote control walks, working bucket with 220V outlet;
-Small size, compact and flexible;
>>
