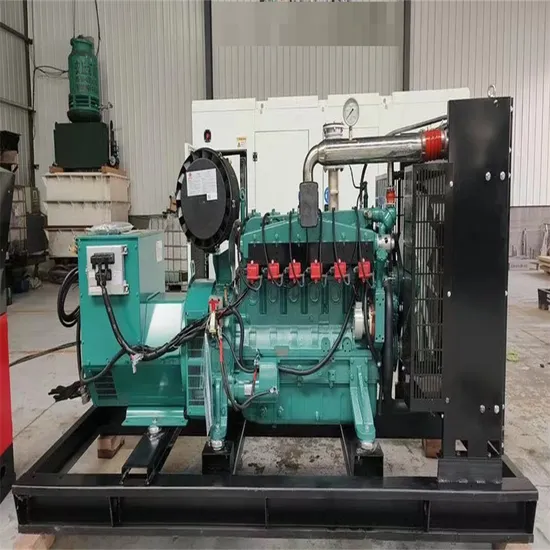

100kw Natural Gas Generator Price/100kw Biogas Genset Price/100kw LPG Genset Price

US$1,750.00-21,300.00 1 Piece (MOQ)

Basic Info.

Output Type
AC Three Phase
Gas Source
Natural Gas
Certification
CE, ISO
Power
50-200kW
Standard
Standard
Generator Color
According to Customer Requirement
Engine Radiator
Larger Heat Dissipation Area
Engine Cylinder Block
Without Any Leak
Engine Crank Shaft
Increases Intensity
Engine Fuel Injection Pump
Without Any Block in Injector
Transport Package
Plywood Box
Specification
compact appearance
Trademark
huayu
Origin
China
HS Code
8502200000
Production Capacity
5000pieces/Year

Product Description

200kw 250kva natural gas generator with competitive price:
MODEL HY-10Q HY-15Q HY-20Q HY-25Q HY-30Q HY-40Q
GENERATOR
GEN-SET
POWER
STAND BY		 KVA 13.75 20.63 27.5 34.38 41.25 55
KW 11 16.5 22 27.5 33 44

PRIME		 KVA 12.5 18.75 25 31.25 37.5 50
KW 10 15 20 25 30 40
OPEN DIMENSION (W x L x H) (mm) 1950 x 850 x 1380 1980 x 850 x 1400 2000 x 850 x 1410 2100 x 950 x 1430 2100 x 950 x 1450 2300 x 1000 x 1500
OPEN WEIGHT (kg) 630 650 670 720 750 950
ENGINE BRAND HUAYU HUAYU HUAYU HUAYU HUAYU HUAYU
TYPE HY35D1 HY35D2 HY35D3 HY43D1 HY43D2 HY52D1

POWER		 STAND BY KW 16.5 22 27.5 33 38.5 50.6
PRIME KW 15 20 25 30 35 46
SPEED (rpm) 1500 1500 1500 1500 1500 1500
CYCLE 4 4 4 4 4 4
DISPLACEMENT (liter) 3.5 3.5 3.5 4.3 4.3 5.2
NUMBER OF CYLINDERS 4 4 4 4 4 6
BORE AND STROKE (mm x mm) 100 x 125 100 x 125 100 x 125 105 x 125 105 x 125 105x 125
GOVERNOR TYPE ELECTRONIC ELECTRONIC ELECTRONIC ELECTRONIC ELECTRONIC ELECTRONIC
ASPIRATION TURBO TURBO TURBO TURBO TURBO TURBO
COMBUSTION SYSTEM DIRECT INJECTION DIRECT INJECTION DIRECT INJECTION DIRECT INJECTION DIRECT INJECTION DIRECT INJECTION
COOLING SYSTEM WATER WATER WATER WATER WATER WATER
GAS
CONSUMPTION
(m3/h)		 %100 OF PRIME POWER 3.3 4.9 6.6 8.25 9.9 13.2
%75 OF PRIME POWER 2.7 4.1 5.5 6.8 8.2 10.9
%50 OF PRIME POWER 1.8 2.8 3.7 4.6 5.5 7.3
MODEL HY-50Q HY-80Q HY-100Q HY-120Q HY-150Q HY-200Q
GENERATOR
GEN-SET
POWER
STAND BY		 KVA 68.75 110 137.5 165 206.25 275
KW 55 88 110 132 165 220

PRIME		 KVA 62.5 100 125 150 187.5 250
KW 50 80 100 120 150 200
OPEN DIMENSION (W x L x H) (mm) 2300 x 1000 x 1520 2750 x 1000 x 1680 2800 x 1100 x 1800 2900 x 1100 x 1800 3000 x 1100 x 1800 3050 x 1100 x 180
OPEN WEIGHT (kg) 970 1900 2100 2150 2210 2250
ENGINE BRAND HUAYU HUAYU HUAYU HUAYU HUAYU HUAYU
TYPE HY52D2 HY98D1 HY98D2 HY116D1 HY116D2 HY116D3

POWER		 STAND BY KW 63.8 99 132 154 187 253
PRIME KW 58 90 120 140 170 230
SPEED (rpm) 1500 1500 1500 1500 1500 1500
CYCLE 4 4 4 4 4 4
DISPLACEMENT (liter) 6,4 7.1 9.8 11.6 11.6 11.6
NUMBER OF CYLINDERS 6 6 6 6 6 6
BORE AND STROKE (mm x mm) 105 x 125 105 x 135 126 x 130 126 x 155 126 x 155 126 x 155
GOVERNOR TYPE ELECTRONIC ELECTRONIC ELECTRONIC ELECTRONIC ELECTRONIC ELECTRONIC
ASPIRATION TURBO TURBO TURBO TURBO TURBO TURBO
COMBUSTION SYSTEM DIRECT INJECTION DIRECT INJECTION DIRECT INJECTION DIRECT INJECTION DIRECT INJECTION DIRECT INJECTION
COOLING SYSTEM WATER WATER WATER WATER WATER WATER
GAS
CONSUMPTION
(m3/h)		 %100 OF PRIME POWER 17 26.4 34 39.6 49.6 66
%75 OF PRIME POWER 14 21.8 28 32.7 41 54.5
%50 OF PRIME POWER 9.4 14.6 19 22 27.6 36.6
