Coal Tar Dewatering Decanter Centrifuge Machine of Closed Explosion-Proof

Product Description

Product Description

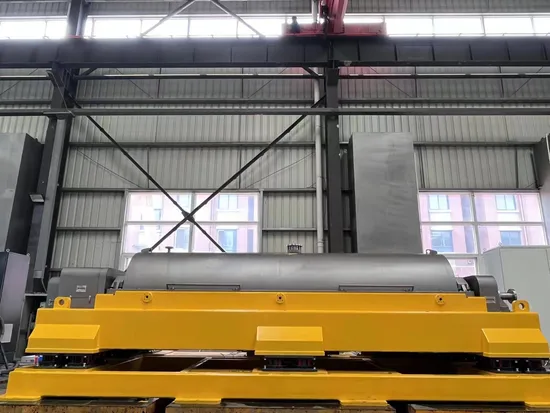

LWS Continuous Explosion-proof decanter centrifuge
The centrifuge is used in explosive or flammable applications in chemical industry, petrochemical industry, pharmacy industry and other industries, and any leakage of gas into the external atmosphere is prohibited in the course of solid-liquid separation, or used in solid-liquid separation in applications in which explosion may be caused if the external air enters the inner chamber of the centrifuge. Both ends of the bowl and the liquid outlet are airtight to achieve the airtight and flameproof effect.
Structure and principle of airtight seal The gas-tight seal is a special structure consisting of the mechanical seal and inert gas supply device. It effectively prevents the external air from penetrating into the inner chamber of the centrifuge, and prevents the gas inside the centrifuge from leaking into the external environment.
The seal device consists of several seal rings and glands, and separates the inner chamber of the centrifuge from the surrounding environment. The inert gas is injected into the space among the seal rings, and then penetrates into the inner chamber of the centrifuge and the external environment through the narrow sealing clearance.
The pressure of inert gas is higher than those of the inner chamber of the centrifuge and the external atmosphere, therefore, entrance of air into the inner chamber of the centrifuge or escape of the gas out of the inner chamber of the centrifuge can be avoided.
LW series Horizontal Decanter Centrifuges feature full-automatic continuous feeding and discharge . This chemical separation equipment has been applied two-phase(solid-liquid) and three-phase(solid-liquid-liquid) slurries separation industry of chemicals, pharmaceutical, environment protection, as well as mining and food, etc.
For different types of raw materials. We will make corresponding adjustments and settings. To ensure that different raw materials can achieve the best separation effect.
Our decanter centrifuge can operate 24/7 with full automation. Provide efficient and powerful assurance for your separation operations.

Product Parameters

Model	Technical parameter					motor power		outline dimension(mm)	Machine weight (KG)
	(Diameter)mm	Rotation speed rpm	Length mm	Separation factor G	capacity M3/h	Main motor KW	Vice motor KW	Dimension: L×D×H
LW250×1000	250	3600	1000	1813	1-3	7.5/11	4/5.5	2065×1050×800	1100
LW360×1200	360	3500	1200	2467	3-8	11/18.5	7.5/11	2600×1500×850	1900
LW360×1500	360	3500	1500	2062	3-8	11/18.5	7.5/11	2800×1400×850	2000
LW420×1750	420	3200	1750	2406	4-20	30/37	11/18.5	3120×1580×1050	3000
LW450×1600	450	3200	1600	2578	5-25	30/45	11/22	3780×1050×1180	3500
LW450×1800	450	3200	1800	2578	5-25	30/45	11/22	3985×1050×1180	3600
LW450×2000	450	3000	2000	2266	5─25	30/45	11/22	4320×1050×1180	3800
LW500×1800	500	3000	1800	2517	10-30	37/55	15/22	4200×1110×1200	4300
LW500×2100	500	3000	2100	2517	10-30	37/55	15/22	4500×1110×1200	4500
LW550×1800	550	3000	1800	2769	10-35	45/55	18.5/22	4380×1160×1230	4800
LW550×2200	550	2800	2200	2412	10-35	45/55	18.5/30	4780×1160×1230	5000
LW650×1750	650	2000	1750	1454	20-50	75/90	30/37	4576×1300×1250	6000
LW650×2000	650	2000	2000	1454	20-50	75/90	30/37	4900×1300×1250	6200
LW800×2000	800	1800	2000	1450	40-100	90/110	45/55	6052×1460×2100	10000
LW1000×2350	1000	1600	2350	1432	50-140	110/132	55/75	6850×1860×2300	12800

Company Profile
1. Shenzhou Machinery Equipment Co., Ltd. is a professional centrifuge supplier.
2.We have an experienced team and professional design institute with over 30 years of experience in centrifuge machinery.We sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by telephone video conference.
3.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so on.
4.At the same time,our product with best prices and good quality,welcome to Shenzhou!
FAQ
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
Q4: How to enjoy the OEM services?
A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.

---
