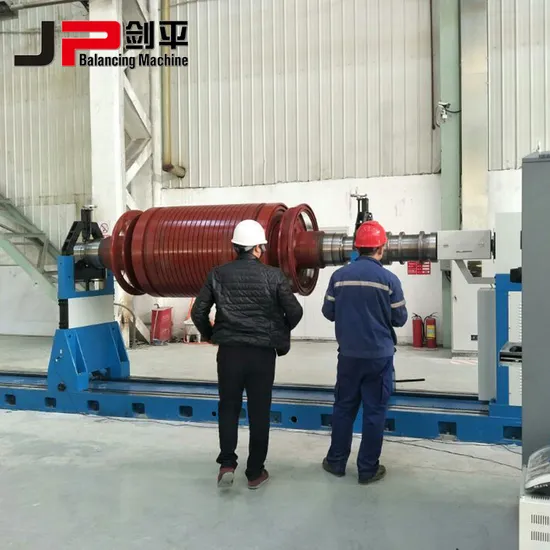

Large Sized Motor Rotor Generator Rotor Dynamic Balancing Machine

Product Description

Production Description

Special designed brackets can effectively transmit mechanical force
The durable and reliable sensor possesses high sensitivity
The permanent calibration brings high accuracy
Driven by universal coupling,transmit the power steadily
Applicable to rotors which can't be driven by belt or need large power
Advanced electrical measuring system and friendly man-machine interface Range of Application 10000/20000kg Universal Joint Drive Balancing Machine (PHW-10000/20000) isalso mainly used in checking the balance of rotatable bodies such as good-sized motors, spindles of machine tools, blower, centrifuges, generator rotor , clinopodiums, pump impeller. drying cylinder. ceramic machinery,rollers,rubber sticks,etc.. Driven by gear box universal coupling , equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. With wide speed range,large driving power, high precision and easy operation etc Special Features The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

Technical data at a glance	PHW-10000	PHW-20000
Mass Scope of Workpiece (kg)	10000	20000
Max Diameter of Workpiece (mm)	2800	2800
Distance Between Two Support Bearings (mm)	Min:450	Min:450
Journal Diameter Scope of Workpiece (mm)	60~400	60~400
Max Distance between Driving Flange and Right Bearing Support (mm)	3600	3600
Rotation Speed of the Main Axis (r/min)	195/336/561/916/1374 +Stepless speed regulation	195/336/561/916/1374 +Stepless speed regulation
Motor Power (kw)	30 Frequency conversion	55 Frequency conversion
Torque of Universal Joint Shaft (N@m)	2250	5000
Min Achievable Residual Unbalance Amount (emar)	1g. mm/kg	1g.mm/kg

---
