Manufacturers Direct Sale of The Highest Quality Antennas

Product Description

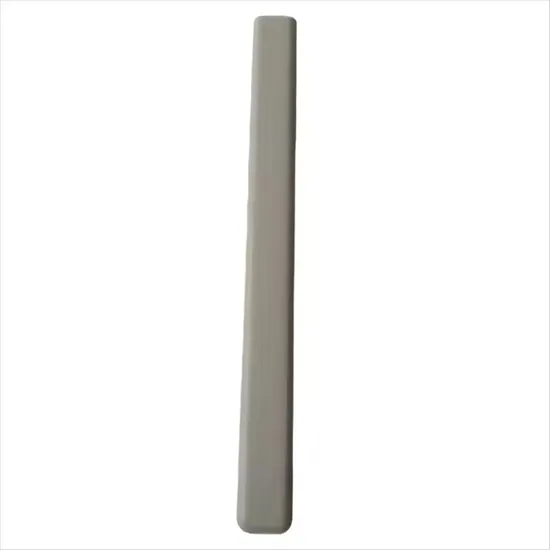

Product Picture Specification

Model No	EIA WG Designation	IEC WG Designation	Freq Range (GHz)	Material (Stock)	Inside Dimensions (mm)	Std Tol ± Inside Dim (mm)	Nom Wall Thickness (mm)	Outside Dimensions (mm)
EF-BJ3	WR2300	R3	0.32-0.49	Aluminum	584.2*292.1		6
EF-BJ4	WR2100	R4	0.35-0.53	Aluminum	533.4*266.7		5
EF-BJ5	WR1800	R5	0.41-0.62	Aluminum	457.2*228.6	0.51	5
EF-BJ6	WR1500	R6	0.49-0.75	Aluminum	381*190.5	0.38	3.18
EF-BJ8	WR1150	R8	0.64-0.98	Aluminum	292.1*146.05	0.38	3.18
EF-BJ9	WR975	R9	0.76-1.15	Aluminum	247.65*123.82		3.18
EF-BJ12	WR770	R12	0.96-1.46	Aluminum	195.58*97.79		3.18
EF-BJ14	WR650	R14	1.13-1.73	Copper Aluminum	165.1*82.55	0.33	2.03	169.16*86.61
EF-BJ18	WR510	R18	1.45-2.2	Copper Aluminum	129.54*64.77	0.26	2.03	133.6*68.83
EF-BJ22	WR430	R22	1.72-2.61	Copper Aluminum	109.22*54.61	0.22	2.03	113.28*58.67
EF-BJ26	WR340	R26	2.17-3.3	Copper Aluminum	86.36*43.18	0.17	2.03	90.42*47.24
EF-BJ32	WR284	R32	2.6-3.95	Copper Aluminum	72.14*34.04	0.14	2.03	76.2*38.1
EF-BJ40	WR229	R40	3.22-4.9	Copper Aluminum	58.17*29.08	0.12	1.625	61.42*32.33
EF-BJ48	WR187	R48	3.94-5.99	Copper Aluminum	47.549*22.149	0.095	1.625	50.8*25.4
EF-BJ58	WR159	R58	4.64-7.05	Copper Aluminum	40.386*20.193	0.081	1.625	43.64*23.44
EF-BJ70	WR137	R70	5.38-8.17	Copper Aluminum	34.849*15.799	0.07	1.625	38.1*19.05
EF-BJ84	WR112	R84	6.57-9.99	Copper Aluminum	28.499*12.624	0.057	1.625	31.75*15.88
EF-BJ100	WR90	R100	8.2-12.5	Copper Aluminum	22.86*10.16	0.046	1.27	25.4*12.7
EF-BJ120	WR75	R120	9.84-15	Copper Aluminum	19.05*9.525	0.038	1.27	21.59*12.06
EF-BJ140	WR62	R140	11.9-18	Copper Aluminum	15.799*7.899	0.031	1.015	17.83*9.93
EF-BJ180	WR51	R180	14.5-22	Copper Aluminum	12.95*6.477	0.026	1.015	14.99*8.51
EF-BJ220	WR42	R220	17.6-26.7	Copper Aluminum	10.668*4.318	0.021	1.015	12.7*6.35
EF-BJ260	WR34	R260	21.7-33	Copper Aluminum	8.636*4.318	0.02	1.015	10.67*6.35
EF-BJ320	WR28	R320	26.3-40	Copper Aluminum	7.12*3.556	0.02	1.015	9.14*5.59
EF-BJ400	WR22	R400	32.9-50.1	Copper Aluminum	5.69*2.845	0.02	1.015	7.72*4.88
EF-BJ500	WR19	R500	39.2-59.6	Copper	4.775*2.388	0.02	1.015	6.81*4.42
EF-BJ620	WR15	R620	49.8-75.8	Copper	3.795*1.88	0.02	1.015	5.79*3.91
EF-BJ740	WR12	R740	60.5-91.9	Copper	3.0988*1.5494	0.0127	1.015	5.13*3.58
W-BJ900	WR10	R900	73.8-112	Copper	2.54*1.27	0.0127	1.015	4.57*3.3

Certifications
Packaging & Shipping
To better ensure the safety of your goods.professional,environmentally friendly,convenient and efficient packaging services will be provided Company Profile
Xian Efine Telecom Technology Co.,Ltd is a leading microwave waveguide components,assemblies and antenna systems manufacturer in China. Established in 2011,Ef Telecom is continually growing to meet customer's needs.
Our highly trained design engineers and manufacturing personnel can handle both standard and custom products to meet your needs.
Our in house design, manufacturing, inspection and quality control capabilities allow fast response to customer requirements.
Our standard delivery time is only half of the average western supplier's standard delivery time.
Our microwave measurement capability up to 60GHz makes us the best choice for the design and manufacturing of your components.
TQM (Total Quality System) and SOP (Standard Operation Procedure) with ISO 9001:2017 certification, which assures WinFine Telecom's strong commitment to quality standards and customer satisfaction. We are confident we offer well-engineered, high quality products at globally competitive prices. Our mission is to satisfy our customers by providing timely and cost effective solutions without compromising quality, performance and delivery. Our Advantages Since 2006,Ef has become a critical supplier and partner to major companies serving the Aerospace, Radar, Defense, Medical, Communications and Specialty Test industries.Ef's product offerings include:
RF Isolator, RF Circulator
Coaxial Termination, Coaxial Attenuator
RF Filter, Duplexer, Triplexer
Power Divider/Splitter, RF Combiner/Hybrid Coupler
Directional Coupler
TX RX Combiner/Splitter/Multi coupler
Waveguide to Coaxial Adapter, etc.We offer cost-effective customized solutions in a wide range of RF and Microwave Components and Subsystems.
FAQ
1. Q: Are you a manufacturer or a trading company?
A:Yes, we are the manufacturer. Our company has 15 years of professional experience in the field of telecommunications and can design and manufacture various microwave waveguide components, coaxial components, antennas and other telecommunications components for the global market.
2. Q: How do I place an OEM order?
A: 1. We will manufacture these products according to the mechanical drawings you provide. Some minor changes may occur during the production process to ensure that we can meet your electrical specifications. Or we can take the first set as a sample to see if it meets your specifications. After communication, the buyer and seller reached an agreement on product details, packaging, purchase quantity, unit price, delivery time, payment terms, etc.
2. The buyer sends a formal PO (Purchase Order) or the seller sends a formal PI (proforma invoice) with detailed terms and conditions.
3. Q: How to solve the after-sales service problem?
After receiving the goods, if you have any dissatisfaction or other problems, please contact us as soon as possible, we will give you a quick response and reasonable solution.
4. Q: How long is your delivery time?
A: Usually 7-15 business days after receiving 100% payment. For bulk orders: 15-35 working days after receipt of deposit.
5. Q: How do I get samples?
A: We need to receive your payment before we can send the sample to you. After the customer confirms the order, we will reduce the sample cost. However, if you are a regular customer of ours, we can send you a sample and then deduct it from your account on the next transaction.
6. Q: What are your payment terms?
A: For small batch orders or urgent orders, you can choose PayPal, Western Union, escrow for the convenience of buyers, 100% payment before delivery; For large orders: 30%/50% of T/T as deposit, balance before shipment.
7. Q: What about the warranty?
A: We can provide a 1-year warranty.

---
