High Pressure Fermentater Reactor for Pharmaceutical Fermentation

Product Description

Description of Fermentation Tank/Vessel
Fermentation Tank/Vessel (also as known as Fermentater) refers to an equipment used in the industries for microbial fermentation. The main body is generally a main cylinder made in all stainless steel and has volume from Hundreds of liters to Dozens of Thousands. Attention should be paid to the structure and rigor in design and processing. It can well withstand Steam Sterilization, has some operational flexibility and minimized internal accessories (in avoiding with Dead Angles/Corners) and also has strong Transfer Performance within Material and Energy, and shall be Easy For Cleaning.
Application Ranges:
Fermentation Tank/Vessel are widely used for facilitating the Fermentation of products like Yoghurt, Beer, Wine, Dairy, Amino Acid, Organic Acid, Beverage, Antibiotics and Fine Chemicals etc.
Product Features:
1. Online CIP cleaning, SIP sterilization (121 ° C / 0.1 MPa, subject to Customerization ).
2.Designed according to the sanitary requirements, the structure design shall be very user-friendly and easy to operate.
3. In appropriate Diameter Ratio, Customized Design with Stir, Cooling, Heating, Air-Breathing, CIP Port, Thermal Isolation etc. as per applications.
4. Inner Side Finish: Mirror or Matt Polish, Ra<0.4um.
5. Dead Angle Free.
6. Pressure and Temperature Design: As per specific applications.

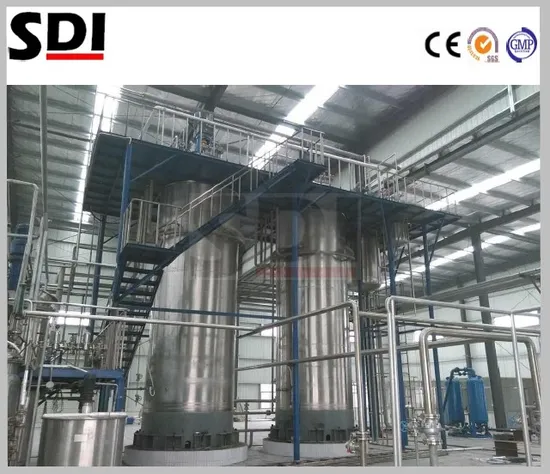

Fermentation tank
Main technical parameters
Product Model	FJ0.1	FJ0.2	FJ0.5	FJ1	FJ2	FJ5	FJ10	FJ20	FJ50
Volume (L)	100	200	500	1000	2000	5000	10000	20000	50000
Diameter (mm)	400	500	700	900	1200	1500	1800	2300	3100
Height (mm)	2000	2300	2650	2900	3800	4480	5250	6550	8550
Pressure in tank (MPa)	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Pressure in jacket (MPa)	0.3	0.3	0.3	0.2	0.3	0.3	Pipe 0.3	Pipe 0.3	Pipe 0.3
Number of blending paddles	2	2	2	2	2	3	3	4	4
Blending rotation speed (r/min)	400	360	265	220	180	160	145	125	110
Motor power (kw)	0.55	0.75	1.1	1.5	3	5.5	7.5	7.5	11
Cooling mode	Jacket						Equipped with coiled heat exchanger
