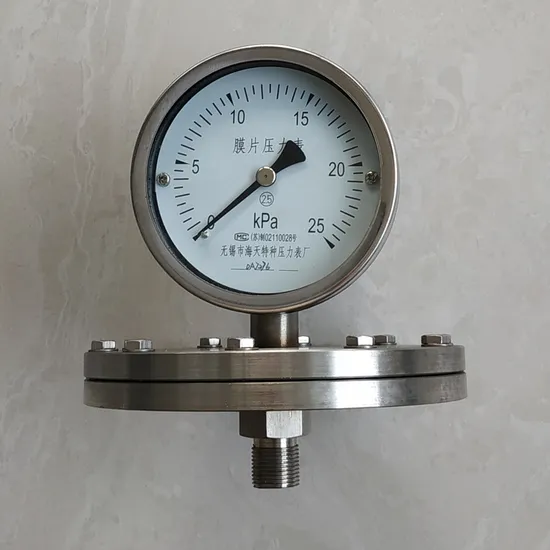

Ypf Serials, Diaphragm Pressure Gauge, Micro Pressure, 4", Case Stainless Steel, Diaphragm Seal

Product Description

Applications Hygienic pressure measurement in sanitary applications for the food and beverage industry For dairies, dairy products, breweries and soft drink production Mechanical pressure display on pipelines and vessels For gases, vapour; liquid, pasty, powdery and crystallising media Product Features Quick cleaning, without residue Both liquid filled and non-filled are available Measurement unit could be bar, psi...etc. as per customer request
Specifications

Model	YPF-100/150A		YPF-100/150B			YPF-100/150B-F
	Possitive Pressure(MPa)	Possitive/Negative Pressure(MPa)	Possitive Pressure(KPa)	Negative Pressure(KPa)	Possitive/Negative Pressure(KPa)	Possitive Pressure(MPa)	Possitive/Negative Pressure(MPa)
Scale Range	0~0.1	-0.1~0	0~1.6	-1.6~0	-0.8~0.8	0~0.1	-0.1~0
	0~0.16	-0.1~0.06	0~2.5	-2.5~0	-1.2~1.2	0~0.16	-0.1~0.06
	0~0.25	-0.1~0.15	0~4	-4~0	-2~2	0~0.25	-0.1~0.15
	0~0.4	-0.1~0.3	0~6	-6~06	-3~3	0~0.4	-0.1~0.3
	0~0.6	-0.1~0.5	0~10	-10~0	-5~5	0~0.6	-0.1~0.5
	0~1.0	-0.1~0.9	0~16	-16~0	-8~8	0~1.0	-0.1~0.9
	0~1.6	-0.1~1.5	0~25	-25~0	-12~12	0~1.6	-0.1~1.5
	0~2.5	-0.1~2.4	0~40	-40~0	-20~20	0~2.5	-0.1~2.4
Pressure-bearing Part D1	φ96		φ160			φ96

Company Profile
Wuxi Haitian Special Pressure Gauge Factory (Wuxi Haite Instrument Technology Co., Ltd.) was established in 1996. The factory covers an area of 15 acres and has a total factory area of nearly 20,000 square meters. We specializes in the production of pressure instruments, thermometers and accessories. The company has inherited decades of manufacturing technology and craftsmanship, and has developed numerous intelligent and standardized measurement products.
Professional technology, exquisite craftsmanship, rich experience, and continuous innovation make Haite Instruments highly favored by users. After more than 20 years of hard work, Haitian Instruments has become one of the special instrument production bases with "multiple varieties and complete specifications". The products are widely used in petrochemical, gas, metallurgy, machinery, electricity, medicine, food and aerospace industries.
The YN series of liquid-filled pressure gauges produced by our factory are selected by many domestic major hydraulic engineering hoist hydraulic stations; the YBF series of stainless steel liquid-filled pressure gauges and YM series of diaphragm pressure gauges have been selected by many power plants and petrochemical companies, especially our products matched with the gas turbine unit of the Yuanwang series of aerospace scientific surveying and mapping ships, and its outstanding quality has been widely praised.
We sincerely hope to establish more extensive business contacts with domestic&foreign enterprises, institutions, distributors, and provide customers with high-quality products and fast services as always.
Certifications
Workshop at A Glance
FAQ: Q: Is there minimum order quantity requirment?
A: Basically yes, but it's case by case.
Q: What's the normal delivery time?
A: 10~45 days if no stock
Q: How about the warranty?
A: 1 Year
Q:Is OEM possible?
A: Yes
Q: Is customized product design available?
A: Yes

---
