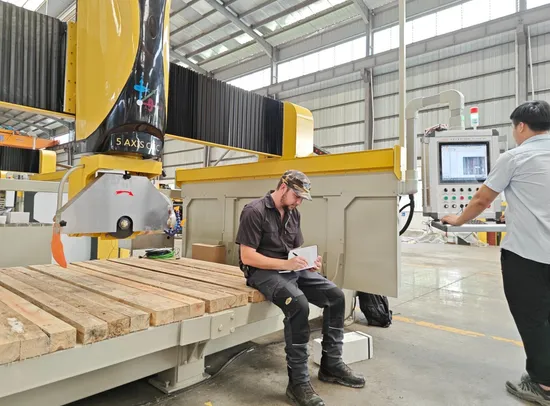

5 Axes CNC Bridge Saw Machine Stone Cutting Equipment

Product Description

5 Axis CNC Bridge Saw Machine CNC Stone Cutting Machine
For Sawing & Cutting Stone Marble Granite Dekton Sintered Stone countertop Product Description
This stone cutting machine is a mono-bloc 5-axis CNC machine. Besides straight cutting, this stone machine is also able to make polygon cutting, straight/arc stone line cutting, curve cutting, vanity top cutting, internal/external round shape cutting and chamfering.
Featuring as smaller installation space, higher precision and efficiency, more simple operation, this CNC stone machine is your best choice for processing stone.

Product Parameters

X-axis route	3500mm		Cutting thickness	0-180mm
Y-axis route	2300mm		Worktable size	3200*2000mm
Z-axis route	450mm		Worktable tilting	0-85°
A-axis route	0-90°		Main motor power	18.5KW
C-axis route	±360°		Total power	31KW
Saw blade diameter	350-600mm		Water Consumption	4m³/h
Saw blade speed	0-6000r/min		Gross weight	5600KG
Machine dimension(L*W*H)			6000*4300*3400mm

Detailed Photos
INVT Servo Drive Motor
Transmission: Linear guide + Taiwan Hiwin ball screw

Lubrication method: X/Y/Z axis is automatically lubricated by electric oil pump, A/C axis is lubricated by grease
Computer operation,simple and clear interface

Use HCFA system
Cutting precision, USB port for transferring files

Self-developed/18.5KW high-speed spindle/ water-cooled spindle

Red laser reticule apparatus
Hitachi inverter
With camera function, AI cutter presetting

Hydraulic Turnover Table
Products of special shapes.
Packaging & Shipping
This stone machine can be loaded into a 20'GP Container.

Installation Instructions
1. There are guide videoes showing how to use this stone machine, and English instruction manual sent to you with machine.
If there is still have any question, we will provide free professional online training for you until you can run the machine well.
2. You can come to our factory to learn the installation and operation.
3. We can send enginner to help you install and teach you use the stone machine.


After Sales Service
Our CNC stone machines have remote troubleshooting function, our enginner can solve most problems by remote control, otherwise we will give video guide.

---
