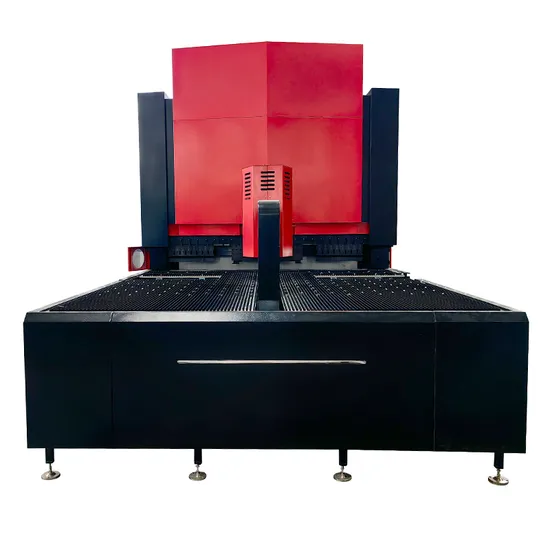

2500mm Automatic Panel Bender for Metal Sheet Fabrication

Product Description

Product Description SHMT is proud to introduce the intelligent flexible panel bender.
√ Tabular programming is visual and handled easily.
√ Users can monitor the machine operation and workpiece output by cellphone APP any time.
√ SHMT automatic bender can bend complex shapes without molding and needn't replace tools.
√ Fully closed loop controlling system supports 25 axes linkage.
√ SHMT bender can match with robot arm in automatic flow line.
√ It's widely used to produce cabinet, fire door, kitchenware, refrigeration, and aluminum walls.

Introduction to CNC Panel Bending :
The flexible bending center focuses on solving various complicated sheet metal and bending problems in metal forming. Through multi-axis concurrent linkage, sheet metal operations are automatically completed, and the dependence on molds and labor is resolved from a technical perspective, which effectively improves production efficiency and reduces production costs.Easily realize the arc, press dead edge, back shape, closed shape and other complex sheet metal bending requirements.
The flexible bending center can be widely used in the field of steel cabinet shells (file cabinets, tool cabinets, outer shields, electrical cabinets, communication cabinets, gas cabinets, water meter cabinets...), kitchen utensils (refrigerators, air conditioners, stoves...) , Furniture, ventilation, refrigeration, purification, door industry, decoration, elevator and other related metal forming fields.
The Flexible Panel Bender bends the sheet metal with one universal tooling, able to bend various complex shapes. It can fold 90 angle, non 90 angle, circular ARC, positive/negative and other complex shapes, now days flexible panel bender become more and more popular in the metal forming field of different industries and different workpieces.

Product Parameters

Model		DES-1200	DES-1400	DES-2000	DES-2500
Max. Continuous Bending Speed		≤0.5sec/each bending	≤0.2sec/each bending	≤0.2sec/each bending	≤0.2sec/each bending
Max. Bending Length		1200mm	1400mm	2000mm	2500mm
Bending Height		175mm	175mm	175mm	175mm
Max. Bending Thickness	stainless steel	1.0mm	1.0mm	1.0mm	1.0mm
	Carbon steel	1.5mm	1.5mm	1.5mm	1.5mm
	aluminum	1.6mm	1.6mm	1.6mm	1.6mm
	Or it can be customized
Min. Bending Thickness		0.35mm	0.35mm	0.35mm	0.35mm
Bending Degree		0-360°	0-360°	0-360°	0-360°
Accuracy of Bending Angle		±1°	±1°	±1°	±1°
Accuracy of Feeding Length		±0.1mm	±0.1mm	±0.1mm	±0.1mm
Clamping Method		Sucked or pressing	Sucked or pressing	Sucked or pressing	Sucked or pressing
Throat Depth		180mm or customized	180 mm or customized	180 mm or customized	180 mm or customized
Min. One-step Forming Size on All Four Sides		150*150mm	150*150mm	150*150mm	150*150mm
Min. One-step Forming Size on Two Sides		220*220mm	220*220mm	220*220mm	220*220mm
Main Power		380V	380V	380V	380V
Peak power		13KW	15KW	22KW	25KW
Average Power		≈1.2KW	≈1.5KW	≈2.2KW	≈2.5KW
Outline Dimension (mm)		3200* 2100* 2900	3400* 2300* 2900	5900* 2900* 3200	6000* 3400* 4200

PRODUCT SHOW
Bending Workpiece Display
FAQ 1. How about the delivery time?
Generally it's 45-50 days based on the model.
2. How is the warranty time?
1 year after installation.
Lifetime free technical support.
3. How to choose the suitable machine?
Please advise us the material/ thickness/ dimension of metal sheet, and product photos.

---
