Hot Sales Automatic Solid Brick Hollow Block Making Machine in Egypt

Product Description

Hot sales Automatic solid brick hollow block making machine in Egypt
Brief Introduction

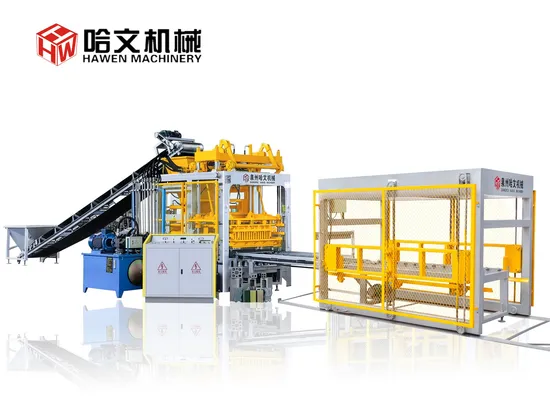

QT10-15 is a hydraulically operated universal block machine ,it is well known for its high performance and excellent flexibility. The intuitive control makes this the ideal machine for the economic production of paving stones, large slabs, kerbs, hollow /solid blocks and special products.
QT10-15 Cement brick making machine is fully automatic with PLC (Programmable Logic Controller) intelligent control.
The control system of brick making machine is equipped with SIEMENS PLC, production program, malfunction diagnosis system and remote control function,easy for operation and maintenance.
Main forming machine equipped with a basic Face-mix device,it can make the double layer paving stone just by changing the mould.

Vibration System
Hang vibration table could bear violent vibration without any damage to crack. And vibration table placed on rubber spring could greatly reduce noise around 10~15 decibel and avoid damage to machine.
The vertical vibration made by eccentric vibration shaft will guarantee the quality and density of concrete products
Strong Frame Structure
The main machine adopts a movable beam,high strength steel structure, four oriented pill an elevating frame which can be adjusted according to the mold height simply and conveniently;The guide column is made of super strength seel, the surface chromium plating has high strength and wear resistance.
Hydraulic system
Hydraulic components adopts famous brand Yuken, we use high-dynamic proportional and directional valves, which automatically adjust the oil flux and pressure as per specific working
Requirements, Adjusting hydraulic pressure and flow controls vibration frequency and range thus change forming cycle time according to different concrete products
Technical specification:

Pallet size	mm	1150×950×28(mm)
Cycle time	S	15-23
Rate Pressure	Mpa	31.5
Vibration force	KN	105
Power	KW	48.9
Weight	T	14.5
Vibration frequency	r/min	3800-4500
Dimension	mm	11500×4050×2800
Raw Materials	Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes
Applied Products	Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.

Output of QT10-15 Block machine in Egypt market (Pallet size 1150*950mm)
Detailed Photos
Precision depends on the process. Different processing equipments to ensure high precision for equipments components and moulds.
Application of QT10-15 Block Making Machine in EGYPT for HASSAN ALLAM HOLDING(H.A. Construction)
Block and Brick Sample
Certifications


Company Profile
Hawen block making machines are for the manufacture of concrete bricks, blocks and paving. The machines are manufactured to heavy-duty standards to ensure long life, high performance and the manufacture of quality products.
Company Profile:
1. Manufacturer of Block making machine with more than 15 years experience
2. ISO Certified Company
Factory workshop
Our Service
Pre-sale service support
According to every customer's demand and budget, we offer the professional factory set up solution, factory layout design, process flow design. More importantly, we welcome every customer to visit our factory and visit our customer site before placing the order

On-sale service supportAssist clients to finish the factory planning,like foundation construction, power preparation,water pool preparation,etc. Before delivery equipment to customers, complete debugging and checking,our machine will do hot testing in workshop with material. Provide a full instruction manual for the block making machine. Provide technical guidance for the installation , including installation advice and electrical connection.
After-sale service support Send technicians to installation site for the guidance, equipment commissioning and training. Provide high-quality spare parts thoughout the year, and the maintenance technicians are always ready to provide technical help.

FAQ1. How many square meters required to set up a block factory?
Answer:Generally,the whole factory requires 5000 square meters, including the recommended workshop to cover the equipments at 500 square meters,equipments are suggested to keep under the shed.
2.What kind of material can be used to produce concrete block?
Answer:Crushed stone(Max.10mm),sand and Cement as raw material, coal fly ash, cinder, slag,gangue, gravel, and other industrial wastes.And if customer makes the top colored paving stone,then the face material of fine sand and white cement and pigmen are required.
3.Can I get the warranty for the machine?
Answer:The warranty for the machine is one year after installation or 15 months after shipment,whichever comes first.Spare parts will be sent to customers for free of charge during the warranty period. Warranty does not cover the wearing parts, in cases of incorrect handling, improper user, insufficient maintenance, unauthorized service or modifications to the machine, normal wear .
4.What is the delivery time?
Answer:The delivery time is 30-40 days upon receiving the down payment and mould drawing approval from customer.
5. What about your payment terms?
Answer:T/T and L/C are acceptable.
Generally,it requested to pay 30% as depoist by T/T before production, and the balance to be paid by T/T or Irrevocable,Confirmed LC at sight before shipment.
6.How to prepare the foundation for the equipments?
Answer:The foundation drawing for the whole plant will be provided within 07 days after the order confirmed,customer could prepare the foundation construction according to the drawing provided.
7.How about the installation & commissioning ?
Answer:After the equipments arrive customer's site,and the preparation for the foundation,water & electricity are ready,we will send 1 of our technician for the installation & commissioning,the technician will train customer's staff for the operation and maintenance of equipment.
8.How about the installation cost?
Answer:We will send our technician for the installation,customer should responsiblefor all the expense and the allowance of our technician.
9.Are the machine be tested in your factory before shipment?
Answer:Yes all of our machines will be tested in our workshop before container loading.You are warmly welcome to do the inspection before shipment.
10.Can I visit your factory before placing the order and where is your factory ?
Answer:You are warmly welcome to visit our factory any time.Our factory located in Quanzhou City,Fujian Province.
The nearest airport to our factory is Jinjiang airport,which is 30 minutes to our factory by car.
How to come to your city?
Answer:You could take the international flight to Guangzhou airport first,then take the domestic flight from Guangzhou airport to Jinjiang airport,we will pick you up from Jinjiang Airport.
Or take the high speed train From Guangzhou South to Quanzhou train station.More information about our product,please contact our sales team!

---
