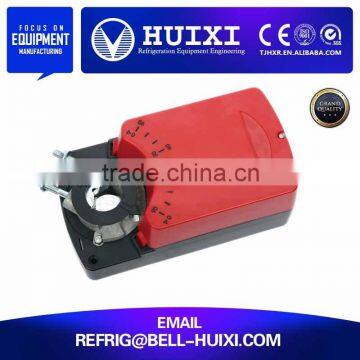

Air Conditioner System Motorized Air Damper Actuator Price
Product Description
Air Damper Actuator Introduction:
Motorized damper actuator is used for regulate and control air damper.It’s widely used in heating, ventilation, air conditioning, refrigeration and other building automatic system. Damper actuator is consisting of actuator and regulating mechanism two parts.
Technical Parameter
Air Damper Actuator Features:
1, 2-32Nm output torque can be chosen.
2, On/off control and modulating control.
3, 0(2)-10VDC, 0(4)-20mA a variety of control and output signal.
4, 24V AC/DC, 28VDC, 100...240VAC a variety of power supply.
5, Universal shaft clamp designed, it can suitable for different size round shaft and square shaft. 4
6, Rotation angle can be adjusted.
7, Rotation direction can be adjusted.
8, It will manual function.
9, Some of model can provided of auxiliary switch.
10, It also can use to drive butterfly valve and ball valve.
Air Damper Actuator Technical Specifications:
Models
| Torque
| 2Nm~32Nm
|
Voltage
| AC/DC 24V, AC100…240V
|
Control type
| 2-point/3-point/Modulating
|
Control signal
| 0(2)…10V DC or 0(4)…20mA
|
Auxiliary switch
| Optional
|
Function
| Direction of rotation
| Selectable by switch
|
Manual override
| Gearing latch disengaged by pushbutton, self-resetting
|
Angle of rotation
| Max 95°, adjustable by mechanical stops
|
Running time
| 20s~35s
|
Sound power level
| 40Db
|
Position indication
| Mechanical
|
Working conditions
| Protection class
| Safety low voltage. Totally insulated
|
Protection degree
| IP54
|
Ambient temperature
| -20~+50℃
|
Inventory temperature
| -20~+80℃
|
Humidity test
| 95% RH, no condensing
|
Size/Weight
| Dimension
| Contact for details
|
Shaft length
| >50mm
|
Shaft diameter
| Depends on the model
|
Weight
| 0.5kg~2kg
|
Air Damper Actuator Model Overview:
TORQUE
| TIME
| POWER SUPPLY
| AUXILIARY SWITCH
|
2Nm
| 20-30s
| 24VAC/DC
| No
|
2Nm
| 20-30s
| 24VAC/DC
| 1 Group
|
2Nm
| 20-30s
| 100-240VAC
| No
|
2Nm
| 20-30s
| 100-240VAC
| 1 Group
|
4Nm
| 35-45s
| 24VAC/DC
| No
|
4Nm
| 35-45s
| 24VAC/DC
| 1 Group
|
4Nm
| 35-45s
| 100-240VAC
| No
|
4Nm
| 35-45s
| 100-240VAC
| 1 Group
|
6Nm
| 35-45s
| 24VAC/DC
| No
|
6Nm
| 35-45s
| 24VAC/DC
| 2 Group
|
6Nm
| 35-45s
| 100-240VAC
| No
|
6Nm
| 35-45s
| 100-240VAC
| 2 Group
|
8Nm
| 35-45s
| 24VAC/DC
| No
|
8Nm
| 35-45s
| 24VAC/DC
| 2 Group
|
8Nm
| 35-45s
| 100-240VAC
| No
|
8Nm
| 35-45s
| 100-240VAC
| 2 Group
|
16Nm
| 80-100s
| 24VAC/DC
| No
|
16Nm
| 80-100s
| 24VAC/DC
| 2 Group
|
16Nm
| 80-100s
| 100-240VAC
| No
|
16Nm
| 80-100s
| 100-240VAC
| 2 Group
|
24Nm
| 140-180s
| 24VAC/DC
| No
|
24Nm
| 140-180s
| 24VAC/DC
| 2 Group
|
24Nm
| 140-180s
| 100-240VAC
| No
|
24Nm
| 140-180s
| 100-240VAC
| 2 Group
|
Please contact me if you need the wiring diagram!
Packaging & Shipping
Damper Actuator Package: high quality carton box
