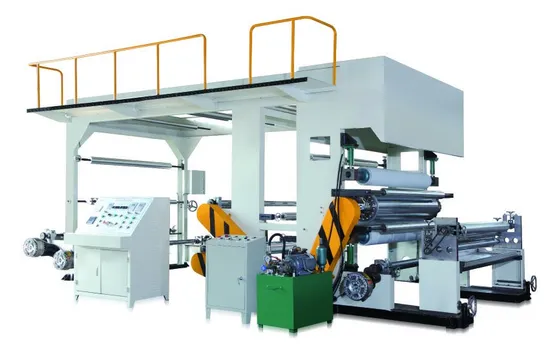

Hydrosol Hot Laminator Machine for Aluminum Foil and Fiberglass

Product Description

Hydrosol Hot Laminator Machine for Aluminum foil and fiberglass HRF-1300 I. Introduction This equipment is a special equipment, which is independently designed and produced for the hot lamination of glass fiber cloth (mesh cloth) and aluminum foil (glass fiber felt). It ranks first in the country in the market share of the mid-to-high-end field. The main frame adopts a steel plate structure, the main wall panels are processed by imported large-scale processing centers, and small parts are processed by imported small processing centers to ensure high precision and high stability; the clutch of the thermal lamination system adopts a more stable and reliable linear guide supporting hydraulic control system, and the winding tension system adopts a more advanced vector frequency conversion control technology.
II. Main Technical Data

No.	Component	Qty
1	Double station (glass fiber cloth/mesh cloth) discharge rack (manual correction, 20kg magnetic powder brake)	2Sets
2	Single station (aluminum foil/fiberglass felt) discharge rack (manual correction, 20kg lightweight magnetic powder brake)	1Set
3	Coating gluing system (see Note 2)	2Sets
4	Aluminum foil (mesh cloth) heating roller ( Φ150×1700mm, temperature 200ºC)	1Pc
5	Bridge roller Mirror roller (Φ120×1750mm)	1Pc
6	Silicone roller (Φ250×1754mm, temperature 350ºC, liquid silicone imported from South Korea)	1Pc
7	Cooling steel roll (Φ175×1750mm, with water-cooled jacket, pneumatic clutch)	1Pc
8	Heat transfer oil heating roller 1 (Φ270×1780mm)	1Pc
9	Heat transfer oil heating roller 2 (Φ400×1780mm, shaft seat with water-cooled jacket, NSK high temperature bearing)	1Pc
10	Heat transfer oil heating roller 3 (Φ500×1780mm)	1Pc
11	Conductive copper ring with carbon brush (80A/80A/30A)	Each 1 Set
12	Glass fiber distribution flattening tension control system (Φ160×1780mm rubber roller, Taiwan Research new magnetic powder clutch manual controller)	2Sets
13	Aluminum foil (glass fiber felt) flattening tension control system (magnetic powder clutch supporting domestic manual controller)	2Sets
14	Aluminum alloy guide roller (Φ120×1700mm)	8Pcs
15	Steel guide roller (Φ120×1700mm)	8Pcs
16	Main heating roller drive system (4kw motor with frequency converter and reducer)	1Set
17	Glass fiber cloth dewaxing hot roller drive system (2.2kw variable frequency motor supporting frequency converter and reducer)	1Set
18	Auxiliary heating roller drive system (3kw variable frequency motor supporting frequency converter and reducer)	1Set
19	Double station receiving rack (manual correction, 4kw vector variable frequency motor supporting frequency converter)	2Sets
20	Compound hydraulic mechanism (Suzhou Xuzhan Φ63×80mm)	1Set
21	Coiling and pressing device	2Sets
22	Fiberglass cloth inflatable discharge shaft (3 inches)	2Pcs
23	Aluminum foil inflatable discharge shaft (3 ")	1Pc
24	Inflatable receiving shaft (3 inches)	2Pcs
25	Heating roller Heating tube (1800w/ Pc)	45Pcs
26	Punching clutch cylinder (distance, Φ50×150mm)	2Pcs
27	Tension Controller (Jiangsu)	2Sets
28	Man-machine interface (10 inch, MCGS)	1Set
29	PLC Module (Mitsubishi)	Whole Sets
30	On-line trimming system (HongHua)	1Set
31	Exhaust hood (retractable, HongHua)	1Set

Note 1:
1. Equipment design speed 35 m/min; normal production 8~25 m/min;
2. Aluminum foil unwinding air expansion shaft adopts enhanced type.
Note 2: Coating and gluing system
A. Technical parameters
1. Maximum coating and gluing material width: 1600mm;
2. Maximum mechanical speed: 35m/min;
3. Coating roller (anilox roller) diameter: 40 mesh, φ120mm~φ300mm;
4. Coating roller (anilox roller) circumference: 377mm~942mm;
5. Scraper string movement: ±5mm (independent motor drive).
B. Structure
1. The main wall panels are processed by imported large-scale machining centers, and small parts are processed by imported small-scale machining centers to ensure high precision and high stability;
2. The roller and roller shaft are integrated and can be quickly replaced;
3. Heavy-duty scraper structure, double cylinder pressurization, lifting, front and back, and swing angle are freely adjustable;
4. The scraper is driven by an independent motor;
5. The scraper moves back and forth, and frequency conversion control is adopted;
6. Stainless steel rubber disc, self-reflow open, up and down lifting can be adjusted manually;
7. The aluminum roller and the roller shaft are assembled by heat sleeve;
C. Specifications
1. Drive motor: AC4kw AC vector frequency conversion motor (SIEMENS Beide motor);
2. Frequency converter: 4KW (Gitaike);
3. Scraper pressure: 5~60kg;
4. Scraper movement: ±5mm.
III. Delivery period
The supplier shall deliver the machine within 60 days after receiving the deposit drawing confirmation (holidays are postponed).
IV. Main color of the equipment appearance
The main color of the equipment appearance is white/mechanical gray.

---
