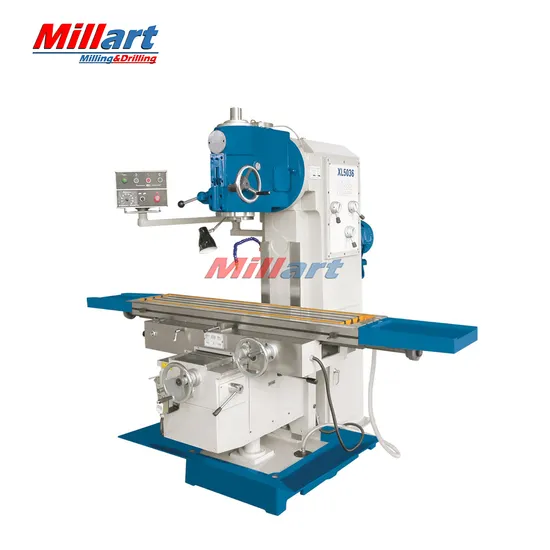

Universal Vertical Milling Machine XL5036c XL5036cl Swivel Head Milling Machine

Product Description

Universal Vertical Milling Machine XL5036C XL5036CL Swivel Head Milling Machine
Feature:
XL5036B Vertical lifting milling machine is a universal metal-cutting machine tool. Its spindle taper hole can be installed directly or by attachment with variety of cylindrical knife, molding knife, end miller, angle miller and other cutting tools. It is applied for process the plane, bevel, groove, hole of various parts. It is the ideal equipment in many professions, such as Machinery, Molds, Instruments, Meters, Automobiles, Motorcycles, etc.
Characteristics:
A. Spindle sleeve can be manually micro-feeding, and set limit device, milling head can be adjusting rotation 45 ° Counter-clockwise.
B. Table can be manual feeding vertically or horizontally, and the table can lift vertically. At the same time, vertical and horizontal mobility can also achieve fast-forward, mobile to mobile feeding and vertical movements;
C. Adopt 1200mm extended slider, and 1500mm length work-table, the longitudinal travel of table up to 1000mm, has strong stability.
D. The main transmission and feeding are used gear speed change mechanism; It has 12 classes different speed, so the range of speed adjustment is widely.
E. Spindle bearing with tapered roller bearings, bearing capability, and using dynamic braking, with a big braking torque, stop quickly, braking reliable.
F. Good stability with rectangular guide.
G. After super audio quenching, the table and guide have stronger intensity.
Technical parameter:

Model	UNIT	XL5036B
Spindle Taper		7:24 ISO50
Distance from spindle end to work-table	mm	70-450
Distance from spindle tovertical guide surface	mm	360
Range of spindle speed	r/min	60-1690(12class)
Rotation angle of vertical milling head		±45°
Table size	mm	1500×360
Table stroke(longitudinal /Horizontal/Vertical)	mm	1000/320/380
Table longitudinal / Horizontal feed speed	mm/min	15-370(8class)540(fast)
Table vertical lifting speed	mm/min	590
Table T-slot number / width / distance	mm	3/18/80
Power of main driving motor	kW	4
Power of table feeding motor	W	750
Power of table lifting feed motor	W	1100
Power of cooling pump motor	W	90
Cooling pump flow	L/Min	25
Net/Gross Weight	kg	2230/2400
Overall Dimension	mm	2380×1790×2100

---
