Product Details
Product Description
Product Description
The next generation servo product J4 is launched with safety specifications and
eco correspondence. This product not only aims at the fastest speed in the
industry, but also introduces the concept of the integration of human,
machinery and environment into this product.
■ Mechanical aspect: the fastest speed frequency response performance of
2.5KHz in the industry is combined with the standard system equipped with
4194304 (22bit) decomposition for absolute position detector equipped with
rotary servo motor.
■ Human aspect: towards human safety and comfortable environment, safety
specifications correspond to the enrichment of easy to user design.
■ Environment: multi axis integrated servo driver with advanced function in
eco era.
■ Inheritance: the combination of servo driver and controller of the previous
model has a very corresponding design.
Characteristic:
Online products
Generally, rotary servo, linear servo and direct drive servo correspond to the
specifications of economic and environmental protection models with 2-axis
integration and 3-axis integration.
SSCNETⅢ/H
Equippe , d with Mitsubishi's latest servo communication network, the data
communication is the evolution of full duplex 150Mbps, the high response
acceleration of the system, and the new generation products of optical fiber
network are launched at the same time as J4.
Advanced one touch functionality
After pressing the setting torque once, the servo gain parameters such as
mechanical common vibration filter and advanced vibration control filter II can
be adjusted to help engineers easily achieve the optimal servo adjustment
operation.
Advanced vibration control filter II
It has 3 low-frequency vibration control algorithms of inertial system, which
can suppress two low-frequency vibrations at the same time. The vibration in
the front end of the body and the corresponding device will be suppressed.

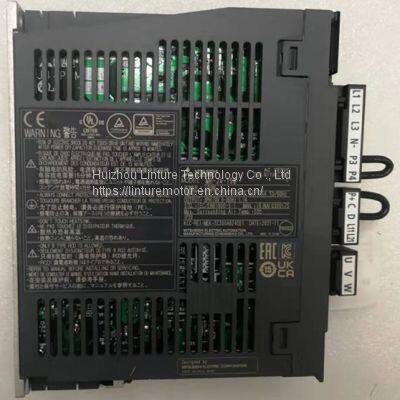

Mr-j4 servo motor mr-j4-700b, a new product of Mitsubishi Electric in Japan
Mr-j4 servo motor, a new product of Mitsubishi Electric in Japan
1、 Servo amplifier with conventional interface can correspond to 4mpps pulse
frequency at most.
2、 Driver for motion control network sscnet Ⅲ / h. It is equipped with full
closed-loop control as standard, which can drive rotary servo motor and linear
servo motor.
3、 Driver for motion control network sscnet Ⅲ / h. It can drive two servo
motors at the same time, saving installation space and wiring. It is equipped
with full closed-loop control as standard, which can drive rotary servo motor
and linear servo motor.
4、 Driver for motion control network sscnet Ⅲ / h. It can drive two servo
motors at the same time, saving installation space and wiring. It is equipped
with full closed-loop control as standard, which can drive rotary servo motor
and linear servo motor.
Mitsubishi mr-j4 series
MR-J4-A (general interface)
it has standard pulse sequence command interface and analog voltage input
command interface
it can switch between various control modes such as position, speed and
torque control
the standard supports command pulse frequency 4mpps
MR-J4-B(sscnet III / h interface)
the communication speed is 150Mbps and the communication cycle is 0.22ms
distance from wiring can be realized (maximum total extension distance
6400m: maximum 100m * 64 axis between stations)
because the optical fiber cable used is the same as the traditional sscnet
III / h, it can be easily interchanged.
Mitsubishi servo amplifier mr-j4 series
mr-j4w3-b / mr-jw2-b (sscnet III / h interface, multi axis integrated
servo amplifier)
it not only inherits the high performance, multi-function and convenience
of mr-j4-b, but also drives two or three servo motors through one servo
amplifier.
compared with mr-j4-b, mr-j4w2-b saves 25% - 30% installation space, and
mr-j4w3-b saves about 30% installation space.
driver for motion control network sscnet Ⅲ / h. It can drive two servo
motors at the same time, saving installation space and wiring. It is equipped
with full closed-loop control as standard, which can drive rotary servo motor
and linear servo motor.
>>
