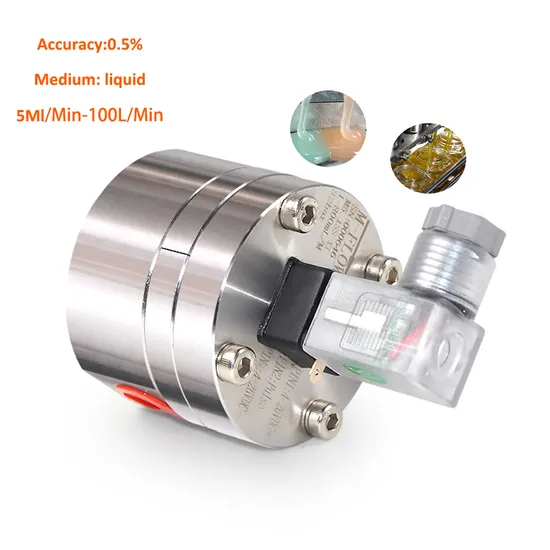

Cx-M5.2-Ss-HP-P-Sz (B) Polyurethane Adhesive Flow Meter Gluing Machine Oval Gear Flow Meter

Product Description

Product Description
[Feature of Positive Displacement Oval Gear Flow Meter ]
High Accuracy
The standard type is 0.5%,for some special medium the accurcy is 0.2%.
The Min Flow Range
The min flow range is 0.5ml/min,The M2 flow range is 0.5~150ml/min.
The Max Pressure and Temperature
The standard type is 32Bar and 80ºC,But can customized for 1000Bar and 150ºC.
Dosing and Alarm Function
The Micro Flow Meter wiht display instrument could reach the dosing and upper and Lower Alarm.
The Quality Material of Micro Flow Meter
Suction Micro Oval Flow Meter with stainless steel 316lL and Aluminum material to suitable for the medium.
Speical and Strict working condition
Suction Micro Oval Flow Meter suitable for Hydraulic system;Painting;Test Bench and more.
[Online Inquiry] [Contact Us]

Product Name	M Series Micro Over Gear Flow Meter
Accuracy	The standard type is 0.5%,some special medium is 0.2%
Temperature	-30~80ºC(the max temperature is 150ºC)
Pressure	30Bar (the max pressure 1000Bar)
Output	The putput is pulse output
Power Supply	4~26VDC
Material	Chamber:SS316 ; Gear;SS316L ;Shaft:SS316L
Medium	Suitable for various chemical liquid

C.[ Working Condition ]
a.Hydraulic System,Hydraulic oil
The strict working condition,So the Heat Hydraulic Petrol Flow Meter Test Bench must with longer workinglife; The Hydraulic system with high pressure,Normal the pressure is more than 16Mpa; Test for Hydraulic oil,The medium must is pure,the micro flow mete need provide the filter; The Hydraulic system is more professional system,So the manufacture with professional engineers and Low cost aftersales. b. The common rail injector test bench
The test bench Heat Hydraulic Petrol Flow Meter Test Bench's flow range is 0.7~400 ml/min,Our micro flowmeter is 1~800 ml/min; The special flow meter need higher pulse parameter,The Model M3 with 0.07 ml/pulse; In the test process,The Heat Hydraulic Petrol Flow Meter Test Bench need provide the filter. C. The Painting industry and painting mechine
The Heat Hydraulic Petrol Flow Meter Test Bench need higher accuracy; The flowmeter need control the flow range and stable output; Artifical painting waste much time and it is easy cause much cost loss; d.The Dispensing industry
The flow meter of dispensing industry should be with higher accuracy. The flow meter should be with dosing function. The medium of dispensing with high viscosity and variety meduim. The Heat Hydraulic Petrol Flow Meter Test Bench should be with lower flow range. Specifications

Model	Flow Range	Connection
CX-M2-SS/AL	0.5~150 ml/min	G1/8 Female thread
CX-M3-SS/AL	3~300 ml/min	G1/8 Female thread
CX-M5-SS/AL	5~1000 ml/min	G1/8 Female thread
CX-M6-SS/AL	0.5~100 L/H	G1/4 Female thread
CX-M9-SS/AL	6~600 L/H	G1/4 Female thread
CX-M12-SS/AL	0.3~30 L/Min	G1/2 Female thread
CX-M25-SS/AL	0.5~100 L/Min	G1/2 Female thread
Test Bench flowmeter	1~800 ml/min	G1/8 Female thread

G Series MicG0.1 SS Flow Sensor Micro Over Gear Flow Meterro Over Gear Flow Meter

Model / Size	M2 M3 M5	M2 M3 M5(High Pre)	M6	M9	M12	M25
A	30	30	40	47	44	56
B	62	62	72	79	79	91
C	G1/8''	G1/8''	G1/4''	G1/4''	G1/2''	G1''
D	40	40	50	60	85	100
E	M5*31	M5*31	M5*42	M5*72	M5*72	M6*61

G Series Micro Over Gear Flow Meter Product Show

Company Profile
FAQ
Q1.Are you a factory?
A1:We are based in Shanghai, China, start from 2011.Main production and sales of various industrial flow meters and other products.Welcome to visit!
Q2.what can you buy from us?
A2:We can provide one-stop flow meter services, providing sales of instruments such as flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, etc.
Q3. What is your terms of packing?
A3: Generally, JSN brand colorful cardboard boxes packing.OEM brandbrown cardboard boxes packing.
Q4. How about your delivery time?
A4: Generally, standard type : 6-7 working days after confirm the order.non-standard type: 8-10 working days after confirm the order.
Q5. What's your MOQ?
A5: We have no MOQ demand, 1 piece for test purpose at first is acceptable.
Q6. How do you ensure good product quality?
A6: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.
Q7. How long your quotation valid?
A7: Our quotation valid for 1 months.
Q8. Can you accept OEM brand?
A8: Yes, we can accept the OEM brand without extra charge.
Q9. How long is your product warranty?
A9: 7 days replacement and 12 months repair free of charge for quality problem.
Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings

---
