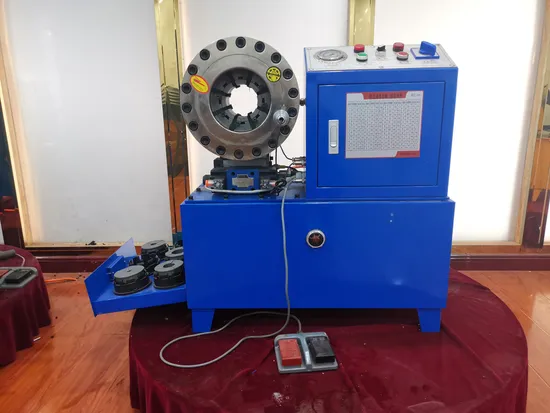

Dx68 (1/4"-2") Automatic Power Steering Rubber Hose Crimping Machine Hydraulic Hose Crimper

Product Description

Product Description
Hydraulic hose crimping machine Application1.For hydraulic hose could crimp up to 2inch,for industrial hose up to 70mm
2.JYC-E51 model can crimp 51mm 4sp hose at one time to get beautiful look;
3.Hose after crimping do not have the problem of leaking, heads off, ellipticity.
4.This model can be used for large production line, it can crimp over 350 pieces per hour.
5.Special dies can be offered as requested.

SPECIFICATIONS FOR HYDRAULIC HOSE CRIMPING MACHINE
Product name	Hose crimping machine	Machine model	JYC-E51
Machine type	hydraulic crimping tool	Application	crimping hose
Crimping range	6-51mm(1/4--2 inch)	System pressure	31.5Mpa
Crimping force	3200KN	Operation mode	electrical
Dimension	450*630*600mm	Die length	60mm
Voltage	220V/380V	Weight	240KG
Rated Flow	10ml/r	Power	3KW/4KW
Dies set	10sets	Prodection Class	IP54

E51 Hose Crimping Machine FeaturesHigh Efficiency High Precision Good Product Consistency
Good Management Easy to operation Low labor Intensity
Product Display
Machine parts
Name:Operation panel
Integrated button
safe and conveninet
Instrument display
Multiple operation mode
Name:Crimping machine dies sets
Have been specially heat treated
Best quality
Never damaged
Name:Crimping machine head
Front housing cover,cylinder and piston rod use material with CR,improve the oil cylinder and piston rod fatigue resistance. Micrometer
Rotary positioning
Scale adjustment
High Precision
Easy to operation Packaging & Shipping

PACKAGING
Size	65*47*62mm
Weight	300kg
packaging details	the normal package is wooden box(67*49*64cm).we could customize package according to customer request.we will do every effort to make sure the machine protected to deliver to our customer's hand

Shipping
we could offer international express,shipping by the sea or other ways.
Certifications
We have CE certificate and ISO certification
and can also provide certificate of origin and various inspection reports according to customer requirements to assist customers in customs clearanc
Company Profile
(1)Our enterprise built up for 16 years!
(2)Made up of 10 years experienced professional R & D Worker and QC persons.
(3)Our hydraulic products will be checked in each step, then double checked by QC, last packed and delivered to warehouse.
(4)Our hydraulic crimping machines get the CE certification.
(5)Our factory have advanced industrial production process to save expenses,
and offer all our customers a good price to win in their market!
(6)We have the deep desire to cooperate with you, we are experienced and have the faith to make you satisfaction with our hydraulic products and service.
(7)We have customers in UK, US, Russia,Australia,UAE,Kenya,Bolivia,Philippines, etc.
(8)Email me or call me directly, we can't wait to see you!
Customers visit
Customer feedback
FAQ:
1.OUR SERVICE:
(1)inquiry and consulting support.
(2)24*7service.
(3)training to how to install and operate the machine.
(4)engineers available to service machinery overseas.
2.OUR ADVANTAGES
(1)BEST QUALITY:Our machines will be inspected before arrange delivery, and will be arranged for shipment only after they pass the test.
(2)Multiple modes of trade terms:we could offer EXW.FOB.CIF.DOOR TO DOOR service,easy for customers.
(3)FAST DELIVERY:We produce many sets of hose crimpers every day,ensure that each model of machine has stock,could arrange delivery as soon as we receive customer's payment.
(4)BEST PRICE:We could guarantee our price could meeting your budget and establishing long-term cooperative relationships.
3.DELIVERY TIME:
Our normal model all have stock now,could arrange delivery as soon as we receive the payment .
4.WHAT IS THE MOQ?
We could offer customer one set to test our machine quality .

---
