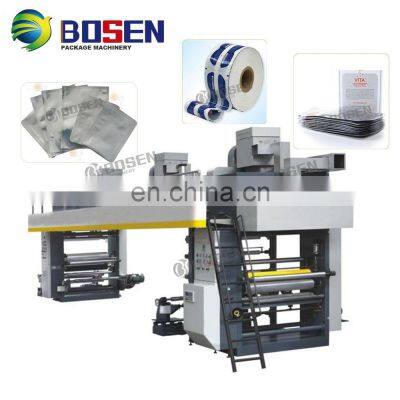

Product DescriptionProduct Application1. Winder unit Max. width of laminating material: 200mm- 33200mm Laminating layers:2 layers Max. Mechanical speed: 130m/min. Max. Laminating speed: 120m/minMax diameter of unwind: 600mm. Max diameter of rewind: 800mmSuitable material:BOPP 18-100μm CPP 20-100μm PET 12-100μm PE 35-100μm NYLON 15-100μm Alu foil Metalized film Paper 18-60μm2. Unwinder unitOutside dual station unwinding turret, 360°inching positive and negative rotation. Each unwinding has two EPC.Adopt with magnetic powder brakeAuto tension control Air shaftAuto splicing and cutting3. Gluing partIndependent motor drive, frequency inverter controllingGluing with anilox roller(Diameter:160mm).Anilox roller is shaftless installation which is convenient.Pneumatic pressing rollers.Pneumatic heave doctor blade, adjusted in 3 direction, controlled by dual cylinder, transmitted by independent synchronous motor.4. Drying part Electric heating.Waste air exhausting tunnel.3 pace intelligent temperature control, 3 pace independent constant hot air drying and recycled system, air circulation system.Material length in the oven: 8000mm /9000mm/10000mm according to the machine size.Pneumatic oven open and closeEPC at the oven exit ensures the material not moving left and right during speeding after heating.5. Laminating part:Independent motor drive, frequency inverter controlling.The laminating rollers are heated by heat-guiding oil, making the heating even and constant.Water cooling roller make the laminating more firm.Floating roller adjust the tension.6. Rewind part:Outside dual station unwinding turret, 360°inching positive and negative rotation.Rewinding is transmitted by two torque motor, it can buffer the film impacting, reduce waste, save time, improving efficiency during roll change under high speedThe horizontal adjustment of the material rolls are manual.Automatic cutting and splicing device.7. FrameThe wall board is made of high strength low stress combined alloy cast iron.The main transmission adopts AC frequency control, gluing roller and hot drum adopts floating roller to control the tightness or looseness of the film.Frequency motor power: Gluing inverter, lamination inverter.Main Features1) Reasonable structure, easy in installation and maintation. 2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. 3) High pressure dry channle opening and closing. 4) Running in a high automatization and intellectualization,no pollution 5) Effective dry system and stable machine system.Detailed ImagesAutomatic Pneumatic Dry SystemVery dry zone has seperated pneumatic system control.Each dry zone could be open and close Wider Large TypeWidth 600mm to 3200mmCompetitive price High speed 150m/minWinder and RewinderFirst winder is web guide correction systemSecond winders has two station Inveter is LG LS DELTA PASONIC YASKAWA...best qualityMotor is Siemens or high quality China brand Test Running Machine more then 2 hours in our factory Confirm very parts go right Test material and take video for our cutomer CertificationsPacking & Delivery Packaging Size according to your lamation width Weight see specification Packaging Details The normal package in containder with film. or pack it according to customers special request.Our ServicePre-Sales Service* Inquiry and consulting support. * Sample testing support. * View our Factory.After-Sales Service* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas.Related ProductsProducts Name with link91.8% Response RateProducts Name with link91.8% Response RateProducts Name with link91.8% Response RateFAQ
>>
