Plastic Household Product Spoon Cup Basin Making Injection Molding Machine

Product Description

Plastic Household Product Spoon Cup Basin Making Injection Molding Machine
Product Parameters

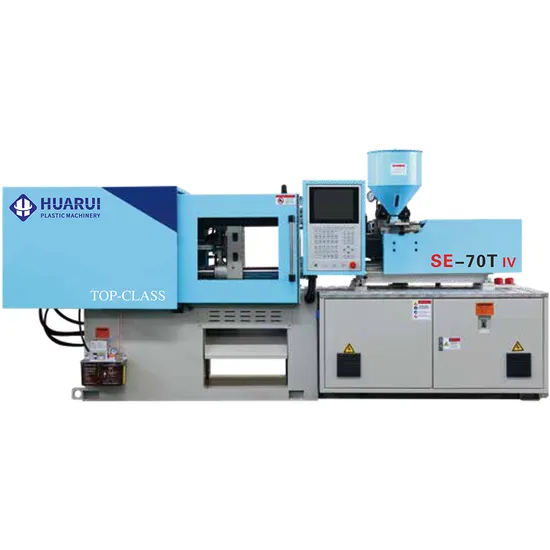

SE-70T IV Plastic Injection Molding Machine Information
Item		Unit		A		B		C
Screw diameter		mm		32		34		36
Theoretical shot volume		cm³		113		192		235
Shot weight (PS)		g		112		127		142
Shot weight (PS)		oz		3.95		4.47		5
Length/Diameter ratio		L/D		22.2		20.9		19.7
Injection pressure		Bar		2150		2025		1890
Injection rate		cm³/sec		110		102		98
Max.screw speed		rpm		200
Clamping force		KN		700
Max.daylight		mm		470*470
Open stroke		mm		300
Space Between Tie-bars		mm		330*330
Min mould dimension		mm		130
Mould thickness range		mm		360
Ejector force		KN		31
Ejector stroke		mm		80
No.of ejector pins		unit		5
Max.motor power		KW		14
System pressure		MPa		175
Heater input power		KW		8.6
Oil filling capacity		L		100
Machine size		M		3.6*1.2*1.7
Net weight		KG		2500

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
