Cast Coating Machine, Photo Paper and Inkjet Paper Production Line

Product Description

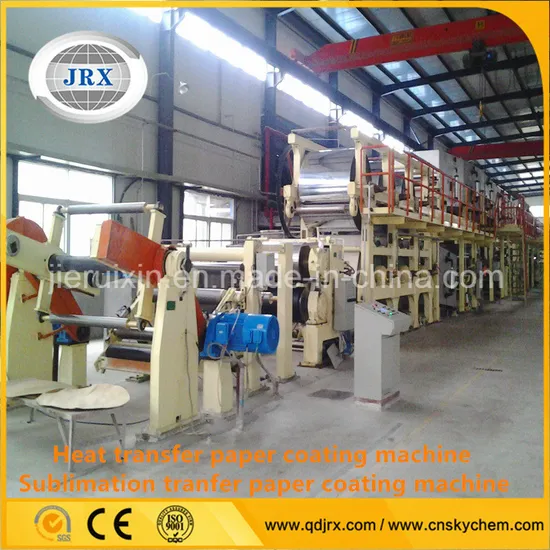

Cast coating machine
high-gloss digital photo paper and coated
inkjet paper production line 1 Chapter Overview
The main purpose of the cast coater: Printing senior art pictures, color ads, calendars, stickers trademark, trade patterns, greeting cards, invitations, bags and other fine crafts.1092mm cast coated production line is applicable to quantitative as 50-250g / m² copperplate, offset as a single sided coated paper, producing glass cards, and other senior high gloss coated paper, the total amount of coating is 10-35g / m², design speed is 30m/min.
Machine configuration: 1 set of electric device on paper, air knife coating , 2 groups of oven , Φ2000mm, (Φ1500mm) 1 set of shiny cylinder, 1 set of roll machine .
2 The main technical parameters and performance
Net paper width: 1092 mm
Coating weight: 10-35 g / m² m ²
Design speed: 30 m / min
Working speed: 15-20 m / min
Steam heating: 0.4 Mpa
Dried form: hot air blowing type
Transmission: electromagnetic torque transmission speed step
Roll diameter: ø 900 mm
Dimensions: 16500 × 3200 × 4500 mm
3. The production process
Paper put device - air knife coating - oven dried (3.75mx2 group) - shiny cylinder ø2000mm (ø1500) - Roll device developing out paper; cast coating cardboard; Advanced packaging paper; Calendar paper; Business Card paper ; etc Special Paper type
4. Electrical requirements:
(1) Motor: dryer used electromagnetic speed motor, torque rolls used moment speed motor.
(2) Electric control: used separate electronic control box to control.
(3) Drying oven temperature is adjusted by manual control
Company Information
We are QINGDAO JIERUIXIN MACHINERY AND TECHNOLOGY CO.,LTD.
,which company is mainly working on paper coating machine ,paper making machine and related technology. Through more than 10 years effort , Besides the machine self ,we have our own chemist and prefer to supply chemical ,formulation ,technology and other suggestion to customers.Then our formulation will match our machines ,and get the best quality paper for them. Now Our company had been one of the famous paper coating machine manufacturer in China and our coating machine and technology had been exported to Iran ,Egypt ,Mexico ,Australia , India and etc.
Our Services:
♦. Reasonable suggestions for selection of equipment.
♦. Provide detailed description and assembly drawing , to make you more aware of the device's ability to work.
♦. Engineers on-site equipment installation and commissioning.
♦. Train and teach your worker to operate the paper machine,
♦. Professional technical guidance and technical support during your production, make sure the device's work properly and production.
♦. Equipment modification and updating.
♦. We will testing installation machine in the factory workshop , to ensure safety and quality.
♦.Supply Carbonless paper and Paper coating chemicals ,formulation ,technology and other suggestion to customers.
♦.After-sales service for one year: equipment maintenance guidance.
♦.Provide Turnkey projects.
More products ⇓These are our main paper coating machine as follows, any other requirments, please feel free to contact with us. We accept customized products at the basis of complying with the requirements of technical specification. Very glad and look forward to your inquiry.
Our Sales Service:
Engineer is available for exporting machine installing and testing running, and supply the technical support for customer worker training Some Easy damageable spare part within the guarantee is free for customer, but the delivery fees is on customers account.

Our serve:Your satisfaction is our service purpose
1	Reasonable suggestions for selection of equipment
2	Professional product's design to meet your equipment needs.
3	Provide detailed configuration of the equipment instruction and equipment assembly drawings, to make you more aware of the device's ability to work.
4	Transportation Service.
5	Engineers on-site equipment installation and commissioning
6	Provide training for your employees
7	Professional technical guidance and technical support during your production, make sure the device's function properly
8	Equipment upgrade & remould
9	Engineer can go to your factory when you need
10	Guidance of maintenance for equipments

---
