Heavy Cutting CNC Lathe Machine/Horizontal Lathe and Turning Machine

Product Description

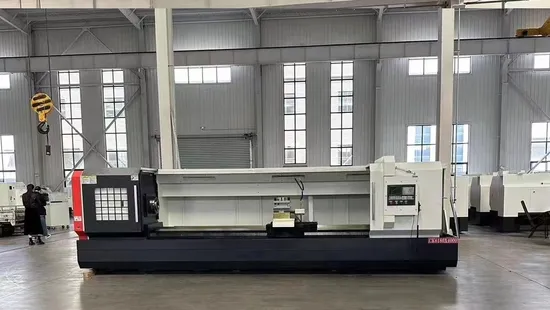

CLK61100E ONE-PIECE CASTING BED CNC LATHE
1. CLK61180E ONE-PIECE CATING BED CNC LATHE SPECIFICATION
2. With semi-closed loop function, the workpiece loading capacity is up to 10 tons,it is suitable for machining variuos heavy-duty shafts, sleevs and discs parts, with complex shapes, such as turning inner and outer cylindrical surfaces, conical surfaces, arc surfaces, grooving, chamfering, and threading. it is easy to program and simple to operate and is ideal for heavy duty machining equipment.

	CLK61180E
Max. swing over bed	1800mm
Max. swing over cross slide	660mm
Max. processing length	3000/4000/5000mm/6000/8000/10000/12000
Spindle transmission type	Four-gear, step-less in gear
Spindle speed steep	5-320
Spindle nose	A2-15
Spindle bore	Φ130mm
Spindle taper	140 1: 20
Spindle motor	30KW
Max. tool-post travel	X:700 mm
Rapid feed speed	X:3000mm/min Z:5000mm/min
Position accuracy	X:0.025 mm Z:0.03mm
X, Y and X axes repeatability	X:0.01mm Z:0.015mm
Processing accuracy	IT7
Workpiece surface roughness	Ra1.6
Tailstock sleeve dia.	Φ220mm
Tailstock sleeve travel	300mm
Tailstock sleeve taper	MT6#
Tool-post	4-statin electric turret
Tool-post at optional	6-station or 8-station electric turret
Toolbar section size	40*40mm
Controller	GSK980TDC
Controller at optional	GSK,FANUC,Siemens

2.CLK61180E CNC LATHE MACHINE FEATURES
Guide width 970mm
higher stability one-piece machine bed
3 gear spindle speed, stepless in gear
higher rigidity pedestal
wider layer board
integrated automatic lubrication system
3. CLK61180E CNC LATHE MACHINE UASGE
This machine is suitable to process the middle and large size work piece in steel, cast iron, non-ferrous metal material. With the feature of big power and higher rigidity, this machine is applied to heavy-cut the inner circle, ex-circle, end surface and thread in both metric and English system, and could drill and bore holes.
4.CLK61180E CNC LATHE MACHINE STANDARD ACCESSORIES
GSK980TDC or Siemens 808d NC system
30 kw common main motor and frequency changer
4 station electric turret
800mm manual chuck
manual tailstock
automatic integrated lubrication system
coolant system
lighten system
half cover
three-step spindle speed
5.CLK61180E CNC LATHE MACHINE OPTIONAL ACCESSORIES
Fanuc 0I mate TD NC system
6 station or 8 station electric turret
steady rest
follow rest
30 kw servo motor
full cover

---
