US$130,000.00-145,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Machining Process
Hydraulic
Certification
ISO9001: 2000, CE, TUV SGS
Power Kw(HP)
57.3kw/2400rpm
Dimension(L*W*H)
5200×4350×3700mm
Transport Package
in Steel Frame
Production Capacity
100PCS/Year
Product Description

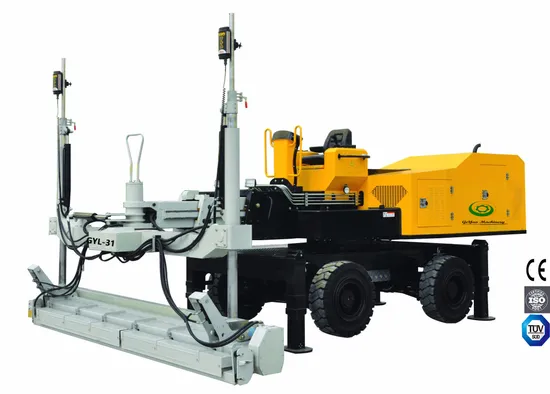

Super good Imported main parts confirguation laser concrete screed GYL-31
The Laser Screed is used in large area concrete construction, such as the modern industrial workshop, the large market, storage, airport, the plaza, and so on. The Laser Screed can satisfy the construction requirements of large area and high planeness and levelness.
Specification:
| Model | GYL-31 |
| Type | Boom type |
| Engine | |
| Model | Yanmar 4TNV98T-ZNLYS |
| Type | Diesel Engine, Liquid cooled, 4 stroke, 4 cylinder |
| Power | 57.3kW/2400rpm |
| Engine oil volume | 10.2L |
| Fuel consumption | 252g/kwh |
| Running device | |
| Driving | 4 Hydraulic drive motor |
| Wheel | Antiskid tyre |
| Steering | Front Wheel/ 4-Wheel/ Crab-shaped turn |
| Outrigger | 4 legs, Self-leveling |
| Working Speed | 0-8km/h |
| Driving Speed | 22m²/min |
| Screed head | |
| Type | Self-leveling |
| Arm Length | 6000mm |
| Width | 3850mm |
| Paving type | With auger |
| Auger force | Hydraulic motor |
| Exciting force | 2000N |
| Vibration frequency | 60Hz |
| Swing Angle | ±45° |
| Screed head control | Ratio control |
| Height of screed head | 560mm |
| Control accuracy | ±1.5mm |
| Laser control system | |
| Control type | Microcomputer laser scan |
| Control effect | Flat, slope or double slope |
| Operation mode | |
| Chair position | Ride-on forward type |
| Forward and reverse | Handle control, stepless speed walking |
| Telescopic arm | Handle control, stepless speed |
| Steering | Hydraulic intelligent control |
| Cleaning system | |
| Power | Hydraulic motor |
| Theoretical flow | 20L/min |
| The Max pressure of inlet | 0.5Mpa |
| Rated pressure | 7MPa |
| Fuel tank volume | 150L |
| Hydraulic oil volume | 150L |
| Size and Weight | |
| Outline dimension | 5200×4350×3700mm |
| Weight | 8200kg |
MACHINERY OPERATION PROCESSING
ASSEMBLING
PACKAGE
TRANSPORTATION
PERFORMANCE
>>
