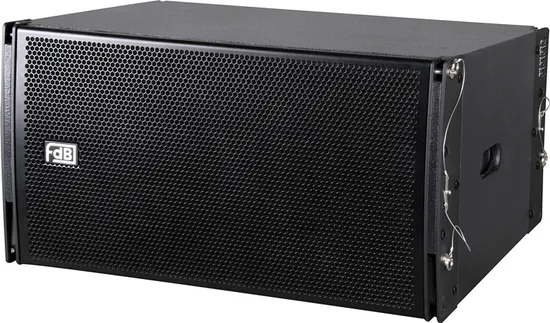

Single 12" 3-Way Professional Line Array Speaker

Product Description

Features:
The LA5312 is a three-way line array loudspeaker for long throw distance sound reinforcement,use the LA5312 flying frame which can be flown in vertical columns up to 16 cabinets. LA5312 is a 3-way design housing fitted with one 12" LF drivers, two 5" MID drivers and two 1" HF driver coupled to 1"×6" line array horn. The cylindrical wave segments of each cabinet can couple without gaps and sum up coherently. Splay angles between adjacent cabinets can be set in the range from 0° to 8°
Applications:
1.Multi-purpose Halls
2.outdoor moving performance
3. Clubs
4. churches
5. Live Events
Main Product Introduction:
1.Line Array System: LA series
2. Monitor System : MR series
3. PA two-way loudspeaker system: U series,QS series, FT series
4. Multi-purpose MINI System: MINI series
5. Column system: K series
6. Plastic system: CX series
7. Long through system: LT series
8. Karaoke sytem: IW series, PR series and KW series
9. Active Series: KS and U Active series
10. Electronice products: amplifier and processor
Factory Introduction:
FDB Audio Manufacture Co., Ltd is specialized in researching, developing and manufacturing in PRO audio products. The main products are professional transducers(HF driver & woofer), speaker cabinets and electronic products like amplifiers and processors.
FDB Audio adopts the world' S top-aided software and advanced techonoloy, owns advanced production equipments and testing apparatus, establishes cooperation development mechanisms with a number of world top grade materials and accessories manufacturers. Some important materials are imported from abroad, like voice coil, diaphragm and paper cone.
FDB Audio has established and strictly enforced the standard quality management system in accordance with ISO 9001: 2008. "Strictly enforce sound processes and standards, full quality control and customer satisfaction" is the quality policy.
Mr. Harry Xia is the boss of FDB Audio, graduated from Physical department of Zhenzhou University. He is engineer, has done proaudio district more than 20 years. He once worked for R&D department of the state-run speaker factory in Henan province about 3 years after graduating university, then worked for a Taiwan speaker factory in Guangdong about 2 years. After that, he joined Elder Audio as the sole engineer, factory manager and also one shareholder of this factory, once cooperated with BOSE, Thoman and Proel, they developed new models together. He worked for Elder audio about 9 years, quitted by the end of 2005 and established FDB Audio in Jan of 2006.
During 9 years effort, FDB Audio has gained good feedbacks from local and overseas market. The customers said " The quality is very stable, reliability and consistency are very good".
Factory Pictures:
Factory Contacts:
Web: fdbaudiochina.en.made-in-china.com
Warmly welcome OEM & ODM customers !

MODEL	LA5312 ( Full range speaker)
FREQUENCY RESPONSE(-3dB)	50Hz-18kHz
DRIVERS	1×12"(300mm)/3"voice coil LF
	2×5"(132mm)/1.5"voice coil MF
	2×1"(25mm)/1.7"voice coil HF
RATED POWER	400W RMS,1600W peak
SENSITIVITY	100dB 1watt/1 metre
MAXIMUM SPL	126 dB continuous,132 dB peak
IMPEDANCE	8 ohms nominal
DISPERSION(-6dB)	Horizontal coverage:100°
	Varies, depending on array length and configuration
CROSSOVER FREQUENCIES	800Hz, 2.2kHz passive
INPUT CONNECTORS	2×Speakon NL8
PACKING SIZE	775mm×600mm×990mm(Flight case/Pair)
	662mm×497mm×822mm
NET WEIGHT	42.7 kg/pc
GROSS WEIGHT	122 kg/(Flight case/Pair)
	46.2 kg/pc(Carton/pc)
MODEL	LA118B (Subwoofer)
FREQUENCY RESPONSE(-3dB)	40Hz-300Hz
DRIVERS	1×18"(460mm)/4"voice coil LF
RATED POWER	600W RMS,2400W peak
SENSITIVITY	99dB 1watt/1 metre
MAXIMUM SPL	127dB continuous,133 dB peak
IMPEDANCE	8 ohms nominal
INPUT CONNECTORS	2×Speakon NL4
PACKING SIZE	775m×860mm×775mm(Flight case/pc)
	895mm×795mm×615mm
NET WEIGHT	71.5 kg/pc
GROSS WEIGHT	108.5 kg/(Flight case/pc)
	77.5 kg/pc

---
