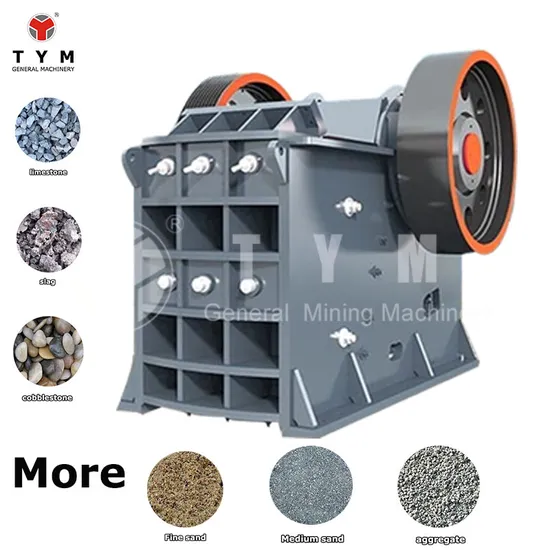

Big Capacity Europe Type Stone Primary Jaw Crusher Machine for Sales

Product Description

Product Description

Jaw crusher is mainly used to crush kinds of mining stones primarily,and the largest compression resistance of the material to be crushed is 320MPa.easy maintenance and less operating cost. The jaw crusher is widely used in mining, metallurgical industry,building material, highway, rallway and chemical industry.
3D layout drawing

Work Principle
Jaw crusher contains frame, eccentric shaft, big belt pulley, flywheel, side guard plate, toggle plate, back seat of toggle plate,clearance adjustable screw, reset spring, fixed jaw and movable jaw, etc. and among them the toggle plate also has insurance effect.The crushing way of this series jaw crushers is curve extruding. The motor-driven belt and belt pulley drive the removable jaw plate up and down through eccentric shaft.When the movable jaw plate moves up, the angle between the toggle plate and the movable jaw plate gets larger, which pushes the movable jaw plate close to the fixed jaw plate and in this procedure the materials have been squeezed, rubbed and ground; while the movable jaw plate moves down, the angle between the toggle plate and the movable jaw plate gets smaller, the movable jaw plate leaves the fixed jaw plate with forces from the pull rod and the springs and this time the ground materials will be discharged from the bottom opening of the grinding cavity. With periodic crushing and discharge of the movable plate driven by the motor,volume production is completed.
Technical parameter

Model	Feed port size(mm)	Maximum feed length(mm)	Outlet size(mm)	Capacity(t/h)	Motor Power(Kw)	Dimensions(mm)	Weight(t)
PE150*250	150*250	125	10-40	1-3	5.5	896*745*935	0.8
PE200*350	200*350	180	15-50	1-6	11	996*800*760	1.2
PE250*400	250*400	200	20-50	5-20	15	1430*1310*1340	3
PE400*600	400*600	350	40-100	15-60	30-37	1700*1732*1653	7
PE500*750	500*750	425	50-100	50-100	45-55	2035*1921*2000	12
PE600*900	600*900	480	65-165	60-130	55-75	2290*2206*2370	17
PE750*1060	750*1060	630	80-140	80-180	90-110	2655*2302*3110	29
PE900*1200	900*1200	750	95-165	140-260	110-132	3789*2826*3025	58
PE1000*1200	1000*1200	850	195-265	280-560	132-160	5350*4280*3050	69
PE1200*1500	1200*1500	1020	150-300	400-800	160-220	6380*5310*3710	100.9
PEX150*750	150*750	125	18-50	5-16	15	896*745*935	3.8
PEX250*750	250*750	210	25-60	15-30	22-30	1667*1545*1020	5
PEX250*1000	250*1000	210	25-60	15-50	30-37	1550*1964*1380	7
PEX250*1200	250*1200	210	25-60	20-60	37-45	2192*1900*1950	8.5
PEX300*1300	300*1300	250	20-90	16-105	55	2720*1950*1600	15.6

Application

Jaw crusher is mainly used to crush kinds of mining stones primarily, various non-flammable mineral materials,such as quartz, feldspar, calcite, talcum, barite, fluorite, rare earth,marble,ceramics,bauxite,manganese ore, iron ore,copper ore, phosphate rock, iron oxide red, Zircon sand, slag and so on.And the largest compression resistance of the material to be crushed is 320MPa.easy maintenance and less operating cost. The jaw crusher is widely used in mining, metallurgical industry,building material, highway, rallway and chemical industry.

Please give us the following details about your needs,We will give you professional advice.
1.raw materials
2.feeding size
3.discharge size
4.capacity

---
