US$3,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Structure
Vertical Drilling Machine
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Packign Size
108X62X220cm
Name
Vertical Drilling Machine
Spindle Feed
0.07-0.4mm/R
Transport Package
Wood Case
Specification
CE, ISO9001
Production Capacity
100sets/Month
Product Description

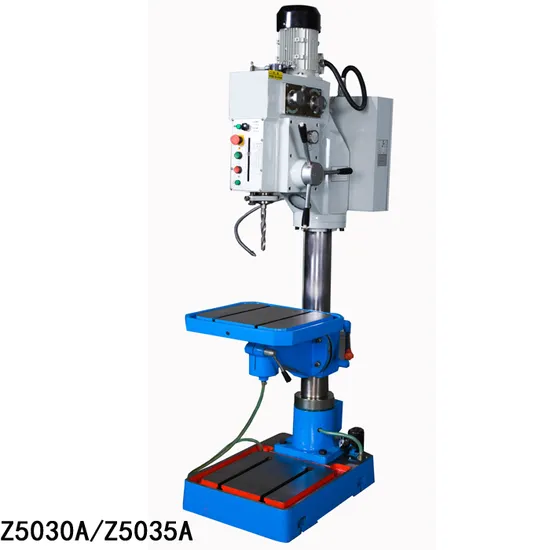

mechanical Pillar Type Column Vertical Drilling Machine
Main features:
The machine is designed with multi- Function of drilling, Broaching, reaming,
tapping and facing milling.With a strengthened capacity of drilling it allows the workpieces to be drilled with larger range of size. It is suitable for using in both production and maintenance shops
1. Easy operation.
2. Casting iron structure for long durability.
3. Column type of vertical drilling machine.
4. Worktable can tilt 45degree1)
5. High quality cast iron.
6.Use electric clutch to transmission feed.
7. Digital readout display of cutting depth.
8.Worktable can be rotated 360 ° and inclined ± 45 °
9. Two speed motor,12 steps gear shift.
10Worktable can be lifted by motor
11.With tool device,coolant and fender
| Model CODE NO. | Z5050A | Z5040 |
| Max.Drilling capacity (mm) | 50 | 40 |
| Max.Tapping capacity (mm) | M30 | M27 |
| Diameter of column (mm) | 180 | 160 |
| Spindle travel (mm) | 240 | 180 |
| Distance spindle axis to column generating line (mm) | 360 | 360 |
| Max.Distance spindle nose to table (mm) | 460 | 460 |
| Max.Distance spindle nose to table (mm) | 1200 | 1200 |
| Spindle taper | MT4orMT5 | MT4 |
| Spindle speeds range (r/min) | 42-2050 | 42-2050 |
| Spindle speeds series | 12 | 12 |
| Spindel feeds (r/min) | 0.07 0.15 0.26 0.40 | 0.07 0.15 0.26 0.40 |
| Dimension of worktable surface (mm) | 550×470 | 550×470 |
| Table travel (mm) | 550 | 550 |
| Dimension of base table (mm) | 450×440 | 450×440 |
| Overall height (mm) | 2380 | 2330 |
| Main motor (kW) | 2.2/2.8 | 2.2/2.8 |
| Goolant motor (W) | 40 | 40 |
| G.W/N.W (kg) | 800/730 | 750/680 |
| Packing dimension (cm) | 108×62×215 | 108×62×215 |
| Standard accessories |
* Drill chuck
* Arbor
* Taper sleeve
* Drift
* Eyelet bolts
* Wrench |
| Special accessories |
* Multi-spindles
* Angle vice
* Safety guard |
>>
