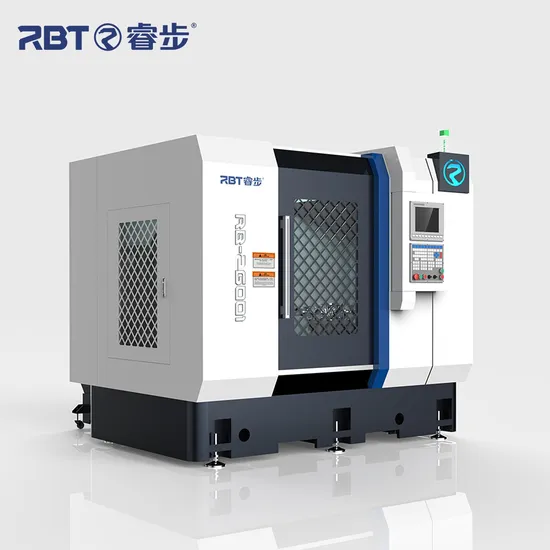

Rbt CNC Drilling Tapping Boring Machine for Brass Bathroom Fittings/Hardware Sets/Accessory/Towel Ring/Towel Rack

US$28,000.00-35,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
RB-F6-0402-Z04/ZG12
Structure
Mill Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
12
Hole Diameter
151-200mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Voltage
380V
X Axis Effective Stroke
350mm
Y Axis Effective Stroke
220mm
Z Axis Effective Stroke
400mm
Control System
Taiwan Syntec
Tool Library
12 Spindle
Total Power
15kw
Weight
3.5t
Lubrication
Automatic Lubrication System
Chip Conveyor
Automatic Chip Conveyor
Lead Time
15days
OEM
Machine Can Be Customized as Required
Y Axis Maximum Speed
48m/Min
X/Z Axis Maximum Speed
48m/Min
Frequency
50Hz
Transport Package
Export Safety Packing (Customized Packing)
Specification
L2200*W1900*H1800mm
Trademark
RBT
Origin
Quanzhou, China
Production Capacity
200set/Month

Product Description

RBT CNC driiling tapping boring machine for Brass Bathroom Fittings/Hardware Sets/Accessory/Towel Ring/Towel Rack
Parameters
Machine Feature 1. The overall stability of the machine is good, and the accuracy is stable and reliable.

2. Constant and high speed motorized spindle, high precision, good reliability.

3. Direct coupling connection, transmission rigid, high precision and stability.

4. Adopt timing and quantitative automatic centralized oil supply lubrication system to ensure that any lubricating part can be fully lubricated.

5. Taiwan SYNTEC CNC control system, humanized man-machine operation interface, safety specifications, convenient operation.


Application
Suitable for the drilling and tapping of the bathroom ware (eg. faucet), hardware, casting pieces, car accessory, lock, door knob, jewelry.
PACKING & DELIVERY
1.Plastic film packaging and put in plywood wooden cases or according to customer's requirements.
2.Shipping : Container transport.
FAQ
Q1. Where is your factory located ? How can I visit it ?
A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.
Q2. Are you produce polishing machine's specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine.
Q3. What is your sample service?
A: We can supply the sample testing which client want to produce or the spare parts.
Q4. What is your MOQ of your machine?
A: Normally our MOQ is 1 set.
Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.
Q6: How is your development ability?
A: We have a strong engineer team to support the drawing, technology proposal, test and certification; We can customize the machine per customer requirement.
Q7: How about your after sales service?
A:We will arrange our technical staffs to your factory to install machine and teach you how to operate it. During the current special period, we will offer all support online via video 24h per day. Before shipment, we will test machine from and then send all videos from installation to production for customers. Full set of manual and instruction in English will be sent with machine together.
