Universal High Precision Automatic Metal Surface Grinder Sga40100

Product Description

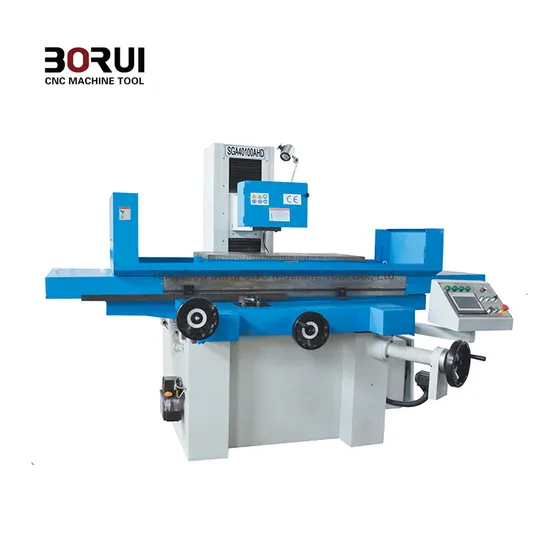

SGA40100 AH/AHR/AHD Automatic surface grinding machine for metal
Product Description


Introduction to coding:
AH--left and right hydraulic, front and rear automatic, up and down manual
AHR--left and right hydraulic, front and rear automatic, up and down electric
AHD--left and right hydraulic, front and rear automatic. Up and down PLC servo control
Characteristics of machine tools:
Structure
The main iron castings are used advanced material, and through annoaling. eliminate stress.to ensure the high precision, high rigidity. and prolong the life of the machine.
Slide
Grinding machine and double v slide adhesive wear resistant resin TURCITE-B (Teflon), andwith the precision scraping. not only the sliding smoothly and wearresistance, the most suitablefor torm grinding
Spindle
Using single type integrated design of spindie directly and P4 grade ultra precision bevel rollerbearing. rotating in high speed, low noise. no vibration, large torque, suitable for heavy cuttingand all kinds of form grinding.
Automatic lubrication system
Adopting circulation type automatic lubrication system, when the spindle starts. lubricatingoil automatic cycle provides lubrication for each screw and slide, can greatly reduce the slidewear. A mirror can watch case oil lubricating machine column above.
Machine parameters:

Model		Unit	SGA-40100AH/AHR/AHD
Table Size		mm	406*1020
MAx.longitudinal travel		mm	1130
Cross tranal		mm	450
Max.distance from spindle center to table		mm	580
Magnetic chuck size		mm	400*1000
Speed of table longitudinal movement		m/min	7-23
Table transverse movement	Auto feed	mm/min	0.1-8
	Rapid speed	mm/min	990
	Feed of handwheel	mm/div	0.02
Wheelhead vertial movement	Auto feed	mm/stroke	-- D12(H/R mode) 0.005/0.01/0.02/0.03/0.04/0.05(only for D model)
	Rapid speed	mm/min	--(H mode) 610(only for R model) 480 (only for D model)
	Feed of handwheel	mm/div	0.005
Grinding wheel	speed	rpm	50Hz 1450 60Hz 1750
	(OD*W*ID)Size	mm	350*40*127
Spindle Motor		kw	4/5.5
Hydranlic Motor		kw	2.2
Cooling pump motor		kw	0.09
Elevating Motor		kw	--(H mode) 0.25 ( R mode) 0.5 (Dmode servo motor)
ross feed motor		kw	0.04
Max loading capacity of table(indude magnetco chuck)		kg	600
Total rated power		kw	7.5/9
Height of machine		mm	1890
Floor space(L*W)		mm	4400*2200
Gross weight		kg	3900
Package dimensions(LxWxH)		mm	2960*2250*2220

Standard Accessories:
Coolant tank
Shandard electro magnetic chuck
Balancing arbor
Wheel flange
Wheel extractor
Leveling wedge and bolt
Tool box and tools
Standard grinding wheel
Working lamp
Wheel dresser shant(not include diamond pen)
Build inelectro magnetic chuck controller
Optional Accessories
Details Display

Packing shipping
For machine: usually by sea; For documents: by international express, eg. DHL,TNT or EMS.For packing :Free fumigation plywood packaging steel baseour service1. Technical support online service provided.2. Technical files service provided.3. Machine operation video provided4. On-site training service provided.5.Spare parts replacement and repair service provided.6 All of the questions will be replied within 8 hours7. If you need to develop products with your own specification, we can help you to work it out.8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing10 years' history for exportTotal 2 manufacturing bases in chinaSino-germany technology cooperationProduction of 8 categories, more than 130 kinds of productsSet up design&research center at TAIWAN Exported to total 48 countries in the world covered most areasOne-stop shopping for nearly all other types' machine tools
1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination. Contact us

---
