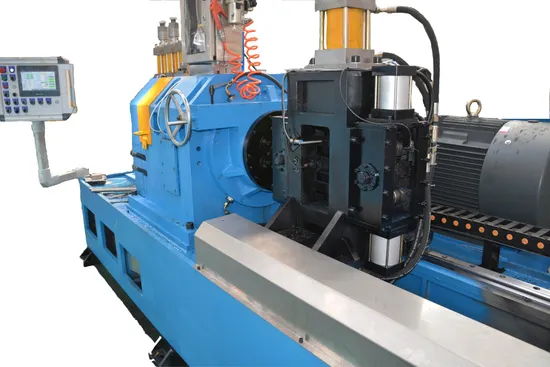

Realwell Centerless Peeling Machine for Round Mild Steel Bars

Product Description

General Introduction
The WXC series peeling machine are special high-efficiency lathes for roughing and finishing the outer circumference of round bars/ pipes and wire rods. It removes decarburized layers, cracks and other crackers on the surface of the bars quickly and with high precision.
he models in the parameter table can be made into common types (Type B, Type C), small (CA) type and numerical control (S) type.
ALL THE MODELS THAT WE HAVE

Model	Input Dia	Length	Feeding Speed	Cutting Depth	Surface Roughness	Dia.Tolerance	Spindle Motor	Total Capacity
WXC20	ф5-ф20mm	≥1400mm	1-25m/min	0.5-2mm	Ra≤3.2	IT9	22KW	30KW
WXC40	ф5.5-ф40mm	≥1400mm	1-15m/min	0.5-2mm	Ra≤3.2	IT9	45KW	63KW
WXC60	ф13-ф75mm	≥2000mm	1-15m/min	0.5-2mm	Ra≤3.2	IT9	45KW	63KW
WXC80	ф16-ф85mm	≥2200mm	1-12m/min	0.5-3mm	Ra≤3.2	IT9	55KW/75KW	75KW/90KW
WXC100	ф25-ф110mm	≥2800mm	0.5-10m/min	1-4mm	Ra≤3.2	IT9	75KW	95KW
WXC130	ф35-ф135mm	≥3000mm	0.3-6m/min	1-5mm	Ra≤3.2	IT9	90KW	120KW
WXC160	ф45-ф170mm	≥3500mm	0.3-5m/min	1-5mm	Ra≤3.2	IT9	110KW	140KW
WXC200	ф70-ф210mm	≥4000mm	0.3-4m/min	1-5mm	Ra≤3.2	IT9	132KW	165KW
WXC250	ф95-ф260mm	≥4000mm	0.2-2.5m/min	1-5mm	Ra≤3.2	IT9	160KW	210KW
WXC350	ф150-ф360mm	≥4500mm	0.1-2m/min	1-10mm	Ra≤3.2	IT9	200KW	265KW
WXC400	ф205-ф410mm	≥4800mm	0.1-2m/min	1-10mm	Ra≤3.2	IT9	250KW	345KW
WXC500	ф315-ф510mm	≥5000mm	0.1-1.5m/min	1-10mm	Ra≤3.2	IT9	315KW	415KW

Strengths & Merits
1. It can process extra long rods, pipes and wires, including coil to coil, and coil to bars.
2. High efficiency: multiple blades simultaneously operate: its work efficiency is several times higher than conventional lathe.
3. High precision: diameter tolerance of finished products ≤h9, surface roughness ≤6.3 μm
4. Non-pollution: disposals can be recycled.
Parameter Table

Model		WXC80BA
Workpiece Required	Daimater range(mm)	Φ13~ Φ80X2200~unlimited
	Tensile strength σb(Mpa)	≤1100
	Surface hardness	≤HB320
	Bending(mm/m)	≤2
	Diameter tolerance	As per GB 702-88 second group
	Roundness	≤diameter tolerance 50%
	Surface roughness(Ra)	≤25~50mm
Finished Products	Diameter range(mm)	Φ12~Φ78
	Radius cutting depth(mm)	0.25~1.50
	Diameter tolerance	≤IT9(standard diameter tolerance)
	Surface roughness (Ra)	≤6.3μm
	Roundness (mm)	≤0.05
Feeding speed (infinitely adjust speed m/min)		2.0~15.0(Slow down for materials with ceaseless chips, high strength and high hardness.)
Cutter head rotating speed (infinitely variable speed) (r/min)		200~2200
Main motor power (kW)		55(4 electrodes)
Feeding motor power (kW)		5.5 (4 electrodes)
Clamping vehicle motor (kW)		3.7 (servo)
Dimensions (m) (reference)		Host machine 3.2X2X2.1
Weight (t) (reference)		Host machine 5.4
Total capacity (kW)		75
Source of compressed air (prepared by user)		0.4~0.8MPa, 2m3/min, with second grade oil and water separator
