Mpc 1000 Vertical Shaft Planetary Mixer

Product Description

Product Introduction

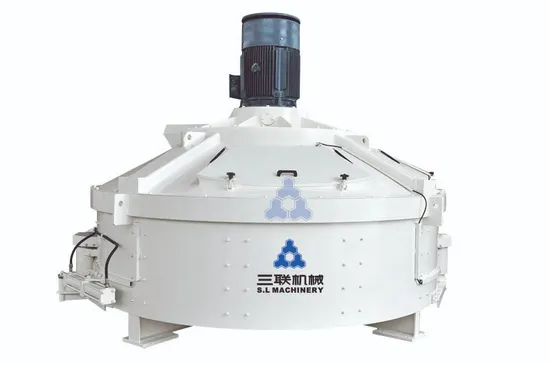

MPC1000 Vertical Shaft Planetary Mixer
Mixing Running Track Diagram:The following figure shows the mixing motion track from 6s to 60s after feeding. Every four turns (6s) can completely cover the bottom plate of the mixer without any dead area.
Features:
Complicated stirring motion track,strong stirring motion,uniform stirring,high efficiency,convenient maintenance and the cleaning. Application:
It is especially suitable for high-end cement products such as sponge permeable ecological brick and PC imitation stone landscape brick on the market. Technical Parameters

Item	MPC	50	100	150	250	330	500	750	1000	1250	1500	2000	2500	3000
Filling Volume	L	75	150	225	375	500	750	1125	1500	1875	2250	3000	3750	4500
Filling Capacity	kg	120	240	360	600	790	1200	1800	2400	3000	3600	4800	6000	7200
Output Volume	L	50	100	150	250	330	500	750	1000	1250	1500	2000	2500	3000
Mixing Power	Kw	4	5.5	7.5	11	15	18.5	30	37	45	55	75	90	110
Planetary Mixing Blade	Qty	1×2	1×2	1×2	1×2	1×2	1×2	1×3	2×2	2×2	2×2	3×2	3×3	3×3
(Side Scraper/ Discharge Scraper)	Qty	1/-	1/-	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/2	1/2	1/2
Discharging Power	Kw	Hydraulic Discharging							3	3	3	4	4	4
Mixing Hopper Diameter	mm	750	1000	1300	1300	1600	1900	2200	2500	2800	2800	3100	3400	3400
Weight	kg	500	850	1300	1500	2200	2500	3500	5500	6000	6500	8500	10500	11000
Note: As we continue to improve and improve the performance of our equipment, the parameters are subject to the actual equipment.

Mixer Details Display
Transmission Device
The specially developed reduction box can effectively distribute the power to each mixing device in a balanced manner, ensuring the mixer operates efficiently and with low noise.Inspection Door
The large inspection door allows for easy inspection and cleaning. The key safety control ensures that the mixer will not be started accidentally during inspection.Hydraulic Discharging Device
The hydraulic discharging system is equipped with a manual door opening device, which can be opened manually in the event of a power outage.Discharge Door
The discharge door is equipped with a limit switch, which can conveniently set the door opening size according to needs. Three discharge doors can be opened.Mixer Interior Display
The specially designed mixing device makes the mixing speed faster, the mixing is more uniform, and there is no pile phenomenon.

---
