| Technical Parameter |
| Optical Fast Connector Optical Performance | Unit( dB) |
| (Reference to China Standard Q/CT 2299-2010-6.1) |
| Code | Test Item | Mechanical Q/CT 2299-2010-Chapter6.1 | Fusion Splicer Type |
| YD/T 2341.2-2011-Chapter 4.7 |
| Average Value | Maximum Value | Average Value | Maximum Value |

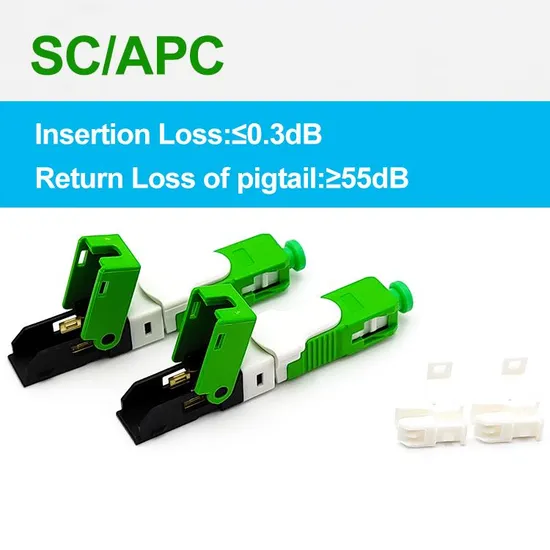

| a | Insertion Loss | ≤0.3 | Tested with standard plugs and adapters:≤0.5 | ≤0.25 | Tested with standard plugs and adapters:≤0.4 |
| Test with any plug and adapter:≤0.7 | Test with any plug and adapter:≤0.7 |
| b | Return Loss | ≥40(UPC);≥55(APC) | ≥50(UPC);≥60(APC) |
| Mark1: IL and RL Test at 1310nm. If need test 1550nm, Please tell us first. |
| Mark2:IL and RL average and Maximum vale make as customer's requirement. |
| Mark3:Return Loss can customized UPC standard -45~-50dB;APC Standard -55~-60dB |
| |
| Application |
| Applied to open FTTH fiber terminal |
| Used in closure boxes, cabinets, teminal boxes, etc. |
| Recovery and maintenance in fiber breakage and other accidents |
| LAN, WAN, data and video transmission |
| Construction and maintenance of fiber access for end users |
| Fiber entry for mobile base stations |
