High Quality Small HDPE Plastic Containers Blow Molding Making Machine

Product Description

Company Profile

Product Description

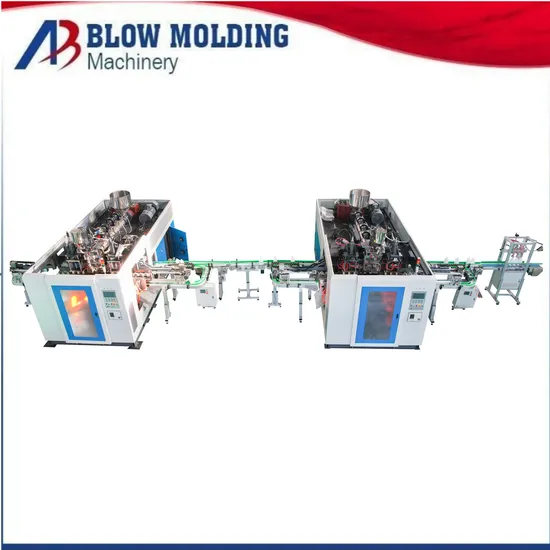

ABLB75II full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 3.5L. This design is low power consumption and very stable.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 7.5L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance. Product Parameters

Technical Parameters: ( ABLB75II )

Max. Product volume	7.5 liters(single die head)
Screw diameter	75mm
Screw L/D ratio	24 L/D
Screw drive power	22 KW
Screw heating capacity	7 KW
No.of heating zone	4 zones
Output of HDPE	100KG/H
Oil pump drive power	11 KW
Clamping force	78KN
Max.size of mold	148-568mm
Mold stroke	400 X 450mm
Max.die diameter	160mm
Blowing pressure	0.6 mpa
Air Volume	0.8 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	80 L/MIN
Size of Machine	3.8x2.2x2.8m
Weight of machine	8 ton
