Twirl 16/22/32/36/42/45mm 12V 24V 0.5W-100W High Torque BLDC or Brushed DC Gear Motor Planetary Gearbox with Encoder

Product Description

Basic Info.

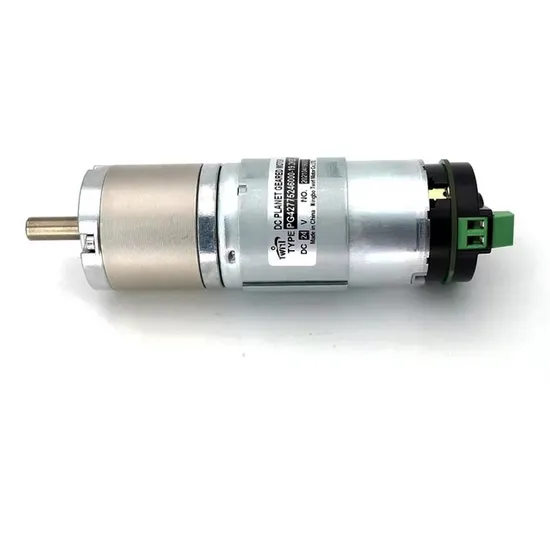

EM custom engineered motors and gear motors.Twirl Motor designs each motor uniquely for your application. PG42775 series Gearmotor consist of 42mm PG42 type planetary gearbox and 42mm RS-775 type brushed motor,with magnet encoder
The gearbox can be customized for different speeds and torque to meet application requirements, with high durability, high performance, high precision, high starting torque, low failure rate, small size, easy assembly, and disassembly.Optional features include encoders, noise suppressors, custom shafts, custom leads and terminations, custom mounting and rear shaft extensions.
Specifications

Product name	42mm diameter planet gear motor
Motor type	carbon-brush commutator
Gear type	Straight gearwheel planet gearhead
Gearbox housing material	1045 Steel
Geartrain material	40Cr Steel , Powder Metallurgy
Shaft material	40Cr Steel
Output shaft support	Dual Ball bearing
Rotation direction	CW/CCW reversible
OEM & ODM Service	Available
Certificate	CE,ROHS,SGS,TUV,IATF16949
Encoder	3PPR,7PPR,13PPR ,Click ME-775 to see details
Shaft Configuration	D-cut,Keyway,Round ,Hexagon, Splined or other type
Customization item	speed , torque, flange , shaft, IP rating
Additional requirements	Lead wire, connector, coupling ,encoder,or other parts

Key Features ---Various gear ratios enable either speed reduction or to increase the torque capability. ---Advantageous torque with minimum space requirements. ---Suitable for continuous, reversing and intermittent operation. ---Can be installed in any mounting position. ---High Torque, Low Energy Consumption, Low Noise. Options ---Magnetic encoder provides feedback for your accurate control of motor speed and positioning. ---Capacitor& resistor for EMC suppression. ---Special shaft material and dimensions. ---Custom design; OEM products available. ---Professional DC gear motor customization at various RPM, torques, OD, voltages, IP rating , etc. CUSTOMIZED DESIGN WELCOME Twirl can provide special shaft or flange version upon request. Gearbox design, Shaft Material, Flange shape and IP level can be made according to your requirement. Certificates&Qualifications CE, ROHS, SGS, TUV, IATF16949 quality management system The following is the specification of the standard product.
Gearbox Data:

Gear Data
Number of stages	1	2	3	4	5
Reducation ratio	3.7	10.2;13.7;19.2	32.5;50.9;71.2;99.5	139;188;264;369;516	699;977;1367;1911;2672
Gearbox length "L"mm	31.8	43.1	54.4	65.7	77
Running torque(kgf.cm)	50.00	100.00	200.00	200.00	200.00
Gear breaking torque(kgf.cm)	100.00	300.00	600.00	600.00	600.00
gearing efficiency	90%	81%	73%	65%	59%

Motor data:

Motor Type	Rated voltage(V)	No load speed(rpm)	No load current(mA)	rated load speed(rpm )	rated current (mA)	rated torque(gf.cm)	Rated output(W)	Stall torque(gf.cm)	Stall current(mA)
RS-775123000	12	3000	≤420	2430	≤1300	408	10.4	2484	≤6.7
RS-775124500	12	4500	≤750	3710	≤2100	476	17.6	2714	≤10.4
RS-775126000	12	6000	≤1400	5000	≤3500	478	25.5	3129	≤18.5
RS-775243000	24	3000	≤230	2590	≤700	405	11.5	2686	≤3.9
RS-775244500	24	4500	≤250	3850	≤1250	538	21.1	4134	≤8.3
RS-775246000	24	6000	≤600	5100	≤1800	574	30.8	4565	≤12.1
BL42126000	12	6000	≤620	5133	≤2785	469	24.7	3396	≤17.1
BL42246000	24	6000	≤340	5319	≤1968	669	36.5	5496	≤14.1

Encoder specs
Packing and delivery
FAQ
1. Can you make the gearbox with custom specifications?
YES. We have design and development team, also a great term of engineers, each of them have
many work years experience.
2.Do you provide the samples?
YES. Our company can provide the samples to you, and the delivery time is about 10-15days according to the specification of gearbox you need.
3.What is your MOQ?
Our MOQ is 1000pcs. But at the beginning of our business, we accept small order.
4. Do you have the item in stock?
I am sorry we donot have the item in stock, All products are made with orders.
5. Do you provide technology support?
YES. Our company have design and development team, we can provide technology support if you
need.
6.How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
7.How to pay the money?
We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.
8. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
9. Can I come to your company to visit?
YES, you can come to our company to visit at anytime, and welcome to visit our company.
10. How do contact us ?
Please send an inquiry

---
