XCMG 10m Gtjz1012 Used Scissors Aerial Work Platform

Product Description

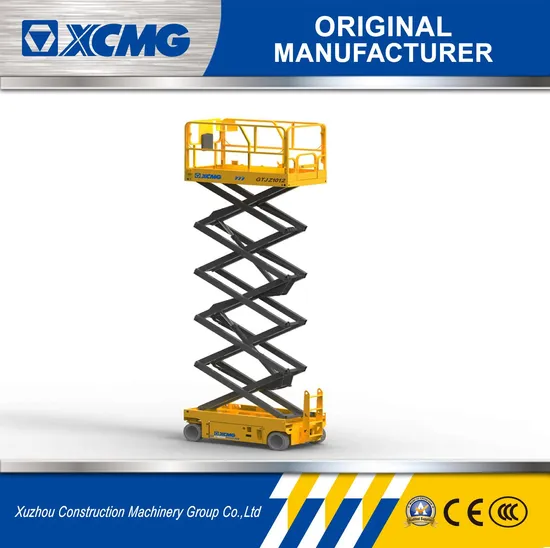

XCMG 10m GTJZ1012 Used Scissors Aerial Work Platform
Product Description
The scissors aerial work platform which is the newly developed series by XCMG can provide customers with a variety of personalization options. The compact structure can be applied flexibly in a narrow space; with the new electric drive system, the driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole protection system, safe and reliable; more extensible platform workspace.
Shear can be used in the truck series construction and maintenance of commercial buildings, warehouses, airports and other areas.

1. Convenient Transportation And Stable Operation
The telescoping sub platform achieves large working space and works with folding platform to realize easier transportation and translocation.The industry-leading automatic pit protection system and the widened wheel tread design enable your free operations even on rough ground.
2. Environmental Cons Truction And Convenient Service
Pure electric drive, zero release,low noise and more environmental construction. Overall swing-type tray is convenient for service and maintenance.

3. General And Modular Design
The modular design for the machine guarantees the universality of parts, makes the customers' repairs and maintenances easier, and achieves more competitive cost.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
Product Parameters

Item	Unit	GTJZ1012
Overall length	mm	2485
Overall width	mm	1170
Overall height	mm	2472
Maximum platform height	m	10
Size of platform	mm	2276×1120×1254
Platform extension length	mm	900
Minimum turning radius	m	0
Wheel base	mm	1871
Minimum ground clearance	mm	101/20
(pot hole protector rising/falling)
The total mass in driving state	kg	3000
Rated load	kg	320
Load of extension platform	kg	115
Lifting speed of working platform	s	56~66
Falling speed of working platform	s	43~58
Driving speed (high)	km/h	3.5
Driving speed (low)	km/h	0.8
Maximum driving platform height	m	10
Maximum gradeability		25%
Battery	V/(Ah)	4×6(240)
Charger	A	30
Tyre specification		Traceless solid core 38.1cm×12.7cm
Incline alarming angle		1.5° (both sides)
		3° (front and back)
