Four-Shaft/Axle Plastic Recycling/Washing Machinery Shredding Waste Plastic

US$12,400.00-253,700.00 1 Piece (MOQ)

Basic Info.

Model NO.
DYFSS
Screw
Four Shaft
Automation
Automation
Computerized
Computerized
Certification
QS, ISO9001:2008
Motor
Simens/Beide/Weg
Inverter
ABB
Application
Plastic Recycling
Electric Control
Schneider
Warranty
1 Year
Transport Package
Wooden Case/Film Packing
Specification
Depending on the model
Trademark
Dyun
Origin
China
HS Code
8477201000
Production Capacity
Variable

Product Description

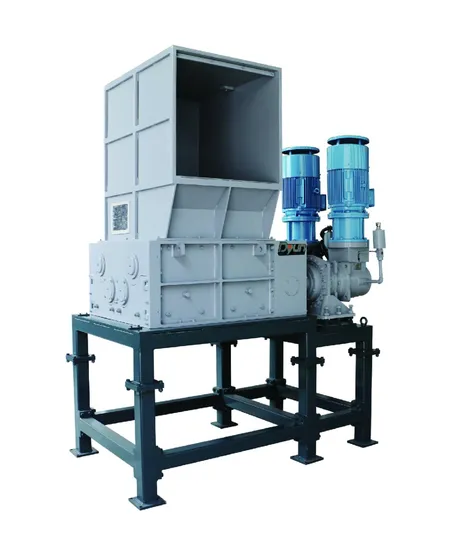

Four-shaft series shredders are of multifunction and versatility. With standardized and modular design, shredder of this series has an advantage of good interchangeability between spare parts. The auxiliary knife is refined by die forging, while the main knife, made of special alloy steel by a special process, is of good wearability and high intensity. The shredder is driven by intermediate gear transmission, forming differential relationship. Shredders of this series are applicable to shred plastic barrels, plastic frames, woven bags, circuit board and paper box etc., and have advantages of controllable discharging size, high-efficiency, low rotate speed and low noise.
DYFSS Series Four-shaft Shredder
Model Motor Power
(kw)
Blade Thickness
(mm)
Main Blade Dia.
(mm)
Main Blade
(pcs.)
Crushing Chamber Size Max.
(mm)
DYFSS-9080 2x18.5 290 Φ25 32 900x800
DYFSS-100120 2x22 320 Φ40 31 1000x1200
DYFSS-130140 2x15+2x30 430 Φ50 28 1300x1400
