2024 Hot Product 100kg/H-6ton/H Animal Pet Dog Cat Fish Food Feed Machinery Plant in Pakistan

Product Description

Product Description

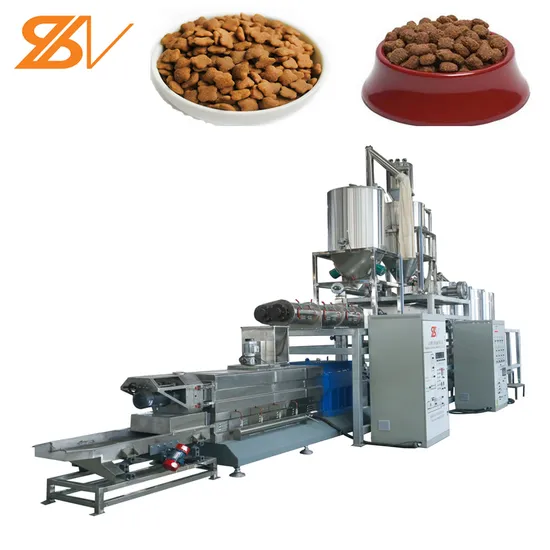

2024 hot product 100kg/h-6ton/h animal pet
dog cat fish food feed machinery plant in Pakistan

Automatic puffed food maker corn snacks extrusion making machine inflating cereals puffs extruder processing line
1. Raw materials: corn flour, wheat flour, rice flour, etc. 2. Shape: By changing the molds and process technology, this line can produce different shapes of puff snacks, like ring, stick, ball, etc. We can provide you with molds. 3. Flow Chart: Mixer→ Screw Conveyor→ Twin Screw Extruder→ Air Conveyor→ Dryer→ Hoister→ Flavoring Roller→ Cooling Conveyor.
4. Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries.
5. Capacity: 100-150kg/h, 200-250kg/h, 450-500kg/h.
Technological Process of pet food,fish feed extruder machine processing line:

Automatic pet food (dog food,cat food,fish feed production line)					Main motor of extruder power	capacity /output	dimension	Appication
Model	Main motor of extruder power	capacity/output	dimension	application
SLG65	22KW	100-160kg/h	26*3*4m
SLG70	45kw	200-300kg/h	30*3*4m	1-30mm dog food,cat food,Pet food: Maintenance nutrition dog food, growth nutrition dog food, health care and prescription dog food. Dry and semi-dry cat food. Dog Food for puppies and adult dogs. Core premixed, concentrated dog food, full-price compound dog food. Puffed dog food. 1-30mm floating,sinking fish feed,aqua: Adult fish feed,carp feed, grass carp feed, prawn feed, crab feed, expanded biological feed, shrimp meal,tiapia feed,trout feed, salmon feed,
SLG85	75kw	400-600kg/h	40*4*6m
SLG90	90kw	600-1000kg/h	45*5*6m
SLG95 horizontal Vertical	110kw	1000-2000kg/h ; 1-2ton/h	55*6*7-12m
SLG 120 horizontal,Vertical	160kw	2000-4000kg/h ; 2-4ton/h	60*8*7-14m
SLG 135 horizontal Vertical	280kw	4000-6000kg/h ; 4-6ton/h	70*8*14m

Main equipment
raw material auto batching,mixing system
Raw material auto batching,vacumm conveyor, mixing system
Material: stainless steel, carbon steel
Twin screw Extruder
To extrude the raw materials and make them to the required shape and size of the puff snacks food by mould.
Model: SLG65, 70, 85,95,120
Capacity: 100kg/h -3t/h
Material: Screw materials 38CrMoAlstainless steel, carbon steel
Dryer
Baking puff snacks food. Type: electrical, steam, gas fired, diesel fired heating type
Model: KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10
Capacity: 100kg/h to 10 ton/h
Material: stainless steel, carbon steel
Flavoring roller
To mix the oil and flavors on the surface of the snacks food.
Type: single and double flavoring drum
Motor: 0.75kw
Capacity: 100kg/h to 500 kg/h
Material: stainless steel
Cooling conveyor
To cool and transport the finished food. Material: stainless steel
Sample
Related Products

Our service
Pre-sale service 1. We have 15 years of experience in mechanical design and customization, and we can design layout drawings for you according to output, factory size and structure.
2. Customers can come to inspect our factory and test the machine. If it is not convenient for you to come, we can send you a video of the test machine or live the test machine process.
3. Provide free puff snacks samples.
4. Inspect the machine before leaving the factory.
After-sales service 1. Provide one year warranty. 2. Oversea installation and commissioning equipment. Technician will work with your workers together and teach your workers how to install machines, how to operate machines, how to maintain machines during daily working, how to clean the extruder, how to change the screw, how to change barrel etc.
3. Provide technology support with you forever, if you have any questions, we provide 24-hour online guidance service. 4. Provide the best price when you need accessories.
Company Introduction
FAQ
Q1: Could we visit your factory to check the machine carefully and closely? A: You're more than welcome to visit Saibainuo, will provide machine test running, face to face discussion and turnkey project design solution. Q2. Could you afford technician team to guide our installation and commissioning? A: Oversea commissioning service provided, our technician will help to install the machine, and teach local workers about operation and maintenance. Buyer should pay for the technician's round flight ticket, accommodation and salary.
Q3. How long is your machine's guarantee time? A: One year since the machine arrive your factory.
Q4. If some parts break after warranty, what should we do? A: Saibainuo supply full-life after sales service, whenever new parts needed, we will help to supply new ones at reasonable price & in shortest time.
Q5. If we show our workshop size, can you design layout for the whole line? A: Auto CAD layout will be provided as client's workshop size.
Q6. What is the material of the machine? A: Stainless steel, especially parts contacting with materials, conforming to food grade.

---
