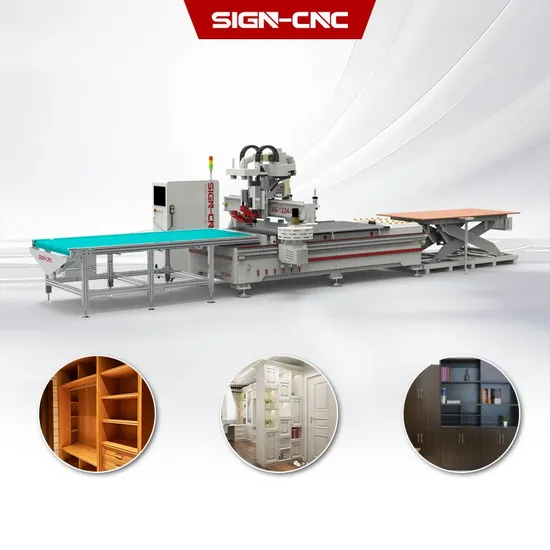

Wood Cutting Machine Furniture Cutting Machine for 1224 Atc CNC with Auto Loading and Unloading Table Woodworking CNC Router

Product Description

Wood Cutting Machine Furniture Cutting Machine for 1224 Atc CNC with auto loading and unloading table woodworking cnc router
PRODUCT SPECIFICATIONS

Model	A6-1224-C8-D
X, Y Working size	1200*2400mm
Z feed Height	300mm
Table Surface	Vacuum table with T-slot
Vacuum pimp	7.5kw air cooling or water cooling
X, Y Structure	25# Square Guide Rail, Rack and Pinion
Z Structure	25# Square Guide Rail and Ball Screw
Max. Power Consumption	(Without spindle) 2.0Kw
Max. Rapid Travel Rate	45000mm/min
Max. Working Speed	30000mm/min
Spindle Power	9 kw ATC air cooling spindle
Spindle Speed	0-24000RPM
Saw	X, Y axis direction change automatically
Drive Motors	Servo motor and driver
Working Voltage:	380V 50/60Hz
Command Language	G code
Control System	Taiwan Syntec 60WE
Oil lubrication system	Automatically
Dust collector	3kw double bags
X,Y,Z repositioning Accuracy	±0.01mm
X,Y Resolution	<0.01mm
Software	Artcam
Running Temperature	0 degree - 45 degree
Relative Humidity	30% - 75%
Optional Parts	Rotary system
Package	Wooden case by plywood with steel tube tray
Warranty	Two years

1. Tiwan SYNTEC control system.
--- Advanced control system, After-sales service worldwide.
2. Disc ATC (automatic tool change).
--- 8-12 tool Magazine. We can make it according your required 8-12 cutter automatic change, for complex wood carving
3. HQD and HSD 9.0kw air cooling spindle.
--- Import famous air cooling spindle is big power.
4. High power inverter
--- High power 11kw inverter to insure the spindle working stable.
5. Saw for cutting
--- Saw working for fast cut and X, Y axis direction change automatically
6. 25# square guide rail, And original rack.
--- High quality Taiwan guide rails, and 25mm square guide rails for the long lifetime and high precision.
7. Servo motor.
--- Japaness / Taiwan servo motor, acceleration performance is high, to ensure the stability and high speed work.
8. Automatically lubrication system
--- Inject oil for the machine all guide rails, keeping machine move smoother
9. Breakpoint memory
--- Can continue to work afte power off & breaking knife
11. Tool sensor
--- Adjust the distance from materials to cutter automatically.
Samples
Furniture industry: Solid wood furniture, solid wood door, wooden cabinet door, Paint-free door, composite gate cabinet, Board type furniture, office furniture, table and chair, door and window and Screen engraving.
Wooden products processing: Wooden Speakers, wooden Clock, computer desk, wardrobe, Sports Equipment
Musical instrument: 3D surface engraving and shape cutting for violin
Artwork line: Photo frame, jewelry box
Electrical industry: PVB circuit board, insulation material, LED display screen
Packaging & Shipping

Company Profile

FAQ
1.I need a CNC Router, Can you give me some suggestions?
A: Of course . but to suggest you the most suitable machine, I need to know further informations such as effective processing area , materials etc.
2.If we do not know how to use the machine, can you teach us?
A:Yes,we will ,if you come to China,we will offer you free training until you can use the machine freely..
3.which kind of materials can be processed on this machine ?
A;Wood, MDF stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials

---
