in China Surface Grinding Machine Universal Column Moving Type Surface Grinder Machine for Sale

Product Description

Product Description

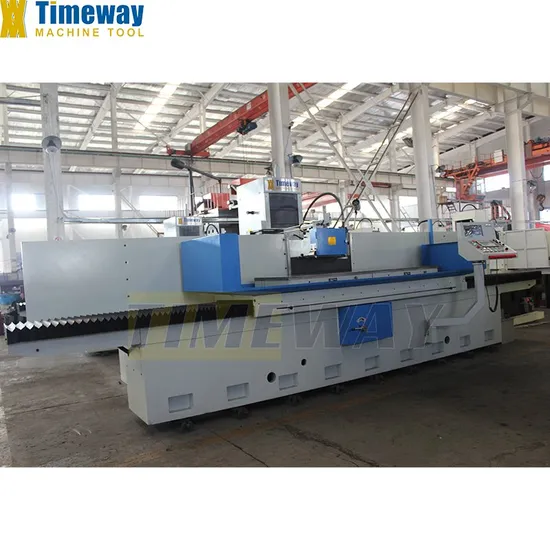

column moving surface grinder machine
Independent hydraulic unit with air-cooling unit ensures low temperature rising and supply stable power for precision grinding.
With auto. center lubrication unit.
Very easy to set auto ground program include rough, finish, and spark-out stroke.
The machine is designed for continuous operating at maximum speed, very quiet operation, maximum accuracy.
The machine bed, table and column are high grade casting iron, which supply strong base of grinding, the slideway is coated with TF wearable material and manual precision scrapped.

SPECIFICATION	UNIT	SG-60220FR	SG-60660FR
Table size	mm	630x2200	600x6000
Grinding area	mm	600x2200	600x6000
Distance from spindle to table	mm	600	600
Electro magnetic chuck size (pcs. )	mm	600x1000x2	600x1500x4
Max. loading capacity (include chuck)	kg	2600	-
Table longitudinal feed speed	m/min	5-25	5-25
Cross intermittent feed rate	mm/str	0-30	1-50
Cross continuous feed speed	mm/min	0-1500	0-1500
Cross feed rate (MPG)	mm/gra	0.005	0.005
Vertical intermittent feed rate	mm/str	0.005-0.05	0.005-0.05
Vertical continuous feed speed	mm/min	0-600	0-2000
Vertical feed rate (MPG)	mm/gra	0.005	0.005
Grinding wheel size	mm	350x40x127	450x75x203
Main motor power	kw	7.5	22
Package dimensions (LxWxH)	mm	6580x2300x2500	13500x2380x2500
Machine weight	kg	8000	18500

MAIN CONFIGURATION & ACCESSORIES: PLC+SMART auto. grinding controller, Coolant tank, Work lamp, Balancing arbor, Wheel flange and extractor, Wheel dresser stand, Y/Z axis electrical wheel(MPG), Splashing guard, Standard grinding wheel, Leveling wedge and bolts, Tools & tool-box, Operation manual (English edition).

OPTIONAL CONFIGURATION & ACCESSORIES: Balancing stand, Magnetic separator, Paper filter, Oil tank guard, Electrical magnetic chuck, Built-in magnetic chuck controller, Parallel wheel dresser, 2 axis digital readout, Extra wheel flange.

Detailed Photos

Well designed external hydraulic unit, with high power oil pump and precision elec-magnetic valve set, stand equipped with cooling fan. The whole system supply great smoothly power for fine ground.

MPG is equipped for Y&Z axis(spindle elevating and cross feed), the operating position is free, it is so easy to control the machine.

The machine is standard equipped with SIEMENS 7" LCD-TFT colourful touchable screen. Built in program of our engineers' genius philosophy makes the operation very simple and convenient for the operators.

One-stop Shopping
Please click on the picture to view the product category you are interested in

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
