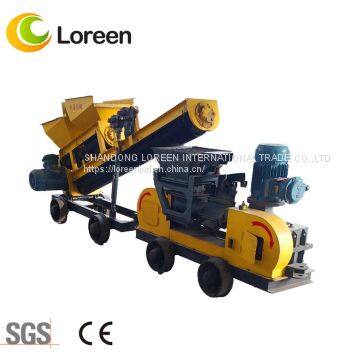

Loreen Wet Shotcrete Spraying Concrete Machine Jpts4-L Model
Application
Jpts4-L product is a wet concrete spraying equipment developed by our company together with domestic concrete conveying equipment experts, which is widely used in coal mine, tunnel, culvert, subway, and hydropower engineering construction.
You can click here to get shotcrete machine price
shotcrete equipment-LOREEN Technical Parameter
Production capacity
| 4~6 m³/h
|
Dimensions
| 2300 x850x 1260mm
|
Concrete sprayer weight
| 960 kg
|
Power of concrete sprayer
| 5.5 kW
|
Gas consumption
| <12 m³/ min
|
Air pressure
| > 0.3 MPa
|
Spray distance/height
| 80/20 m
|
Pipe diameter
| 64 mm
|
Auxiliary motor power
| 0.55 kW
|
Applicable material mix proportion
| Cement: sand: stone =1:2:2
|
Overall dimensions of feeder
| 2800 x 1050 x1540mm
|
Weight of feeder
| 760 kg
|
Power of feeding machine
| 5.5 kW
|
Height of feeding machine
| 1.25/1.45 m
|
Maximum aggregate size
| 20 mm
|
Adaptive collapse
| 100 ~ 180 mm
|
Gauge
| 600/900 mm
|
Voltage grade
| 1140/660 v
|
>>
