6000bph Automatic Plastic Pet Bottle Blow Molding Machine

Product Description

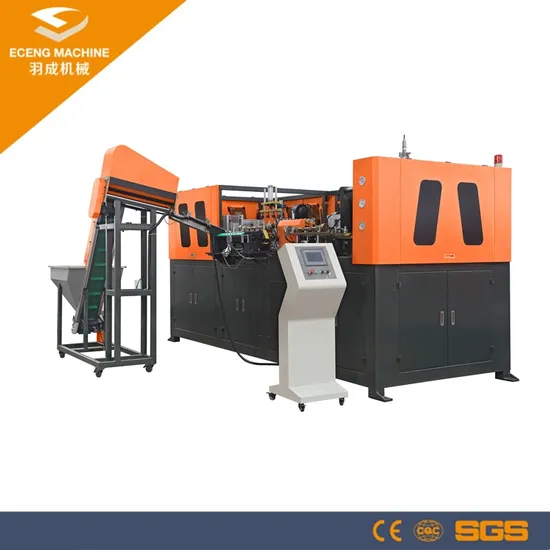

6000bph Automatic Pet Bottle Stretch Blow Molding Machine
MODEL:Q6000
1. Operating :one worker can operate 3 sets this kind automatic blow molding machine .-
2. Package :Standard export packing suitable for sea journey .
3. Valid:The offer is valid in 30days
4. Install and test:We will install and test the machines and have training lessons abroad, but the round tickets, accommodation, eating, and the allowance of 60 USD per day per person will be on customer's side.
5.Service:Provide whole drawing for the perform mould and bottle mould. Free charge for word design on the mould. We can help you install the machine; from setting machine, testing, and to check the machine is on the good working condition. There is a litter charge, only for flight charge and accommodation.
6. Warranty:We response for one year warranty for the machine, however, it without any human conduct. And provide one-year free spare part for client. And send engineer to client's company, help install the machine, teaching their staff operate the machine.
Up 15 million shots for the bottle mould. All moulds are designed by CAD/CAM.
We also can provide the drawing for the mould, help you to maintain the mould, and machine.
7. Delivery time: The machine and mould will be made within 60 working days. AND the bottle mould will be finished with in 3 weeks
8. Payment: 30% T/T deposit within five days after the contract is signed against invoice of the seller. The balance of 70% will be paid before the shipment

	item	YCQ-2L-4
Bottle type specification	cavity	4
	output(PCS/HR)	3200-3500
	Max. volume (L)	2L
	Bottle mouth maximum overall diameter (mm)	28-38mm
	Bottle biggest diameter	100mm
	Bottle maximum height	330mm
Power specifications	Light tube quantity	32pcs
	Light tube power	1.25kw
	Maximum heating power	40kw
	All electric machine installation	43kw
	Actual consumption	21.5kw
Air pressure specification	Work pressure	7-9kg/cm2
	Low-pressure gas consumption	1600Ltr/min
	Blow bottle pressure	25-35kg/cm2
	Higher -pressure gas consumption	3000 Ltr/min
Frozen water specification	Work pressure	5-6 kg/cm2
	Temperature range	10
	Consumption	8000kcal/hr
	Frozen water flow	88Ltr/min
Machine specification	Size of the machine	4.5x1.6x1.9 (m)
	Weight of the machine	3.

Technology Advantage
l. Special design,high rigid compound die structure
2. Wide adaptability, suitable for every type mould thickness
3. Adjust convenience
4. No mould rolling out
5. More energy conservation,no need much air supply
6. High burnish principal axis, with very precise polishing, light action and low noise.
7. Short mould stroke,quick action
8. All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100%
9. Hig dead-weigh, ensure the steady during the opeartion
After-sales service
1.we will provide the bill of load on time to make sure you can get the machine quickly
2.when you finish the Preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual ,and train your employee until they can operate the machine well.
3.we provide one year warranty with spare parts free.
The sample service
1.we can send you the video of the running machine.
2.you are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
Customized service
1.we can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on).
2.at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
SAMPLE SHOW
