US$1,900.00-2,700.00
|
1 Piece
(MOQ)
|
Basic Info.
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
CO2 Laser
Laser Classification
Gaseous Laser
Type
CO2 Laser Marking Machine
Marking Method
Scanning Marking
Marking Area
110*110mm, 175*175mm, 220*220mm, 300*300mm
Max Single Pulse Energy
1.0mj
Laser Beam Quality M2
<1.2
Application Material
0.1-2mm
Process Material
Metal and Some Non-Metal
Lifespan
Over 20, 000hours
Graphic Format
JPG, BMP, Dxf, Plt, Ai, Dst
Control Software
Ezcad Software
Marking Depth
0.01-0.08mm
Transport Package
Standard Plywood Packing for Export
Specification
1650X1250X1050MM
Production Capacity
600sets/Month
Product Description

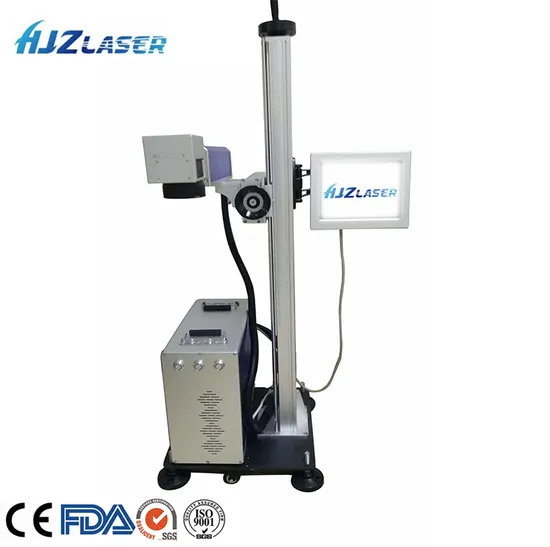

CO2 Laser Marking Machine for Flying Online Expire Date HDPE/Plastic Water Bottle
Our Features:
1.United States imported CO2 laser tube,
2.SINO-GALVO galvo head with speed 7000mm,
3.Imported lens made of zinc selenide,
4.Machine warranty for 2 years,
5.Top quality JCZ motherboard and EZCAD control software,
6.Taiwan MeanWell brand power supply,
7.We support DHL / TNT / FEDEX EXPRESS air shipping to door,
Applicable material:
Wood, paper, leather,cloth, plexiglass, epoxy, acrylic, unsaturated polyester resin and other non-metal materials.
Control software:
-EZCAD software( The latest version of EZCAD)
-Easy to use, smooth operation
-Support WIN XP, WIN7, WIN 8, WIN10 (32bit/64bit)
-Support multiple formats AI, PLT, DXF, BMP, DST, DWG, LAS, JPG, DXP,etc.
techical parameters:
| Model | HJZ-CDB-30 |
| Laser source | US SYNRAD |
| Laser type | Co2 laser |
| Wavelength | 10.6um |
| Max Single pulse energy | 1.0mj |
| Pulse duration | 90-130ns |
| Laser beam quality M2 | <1.2 |
| Marking speed | 1-8000mm/s |
| Frequency | 20-60khz |
| Marking Area | 100*100mm-300*300mm (optional) |
| Marking Depth | 0.01-0.08mm |
| Controller | Computer with marking software |
| Control program | EZCAD control system Compatible with win7/8/10 |
| Graphic format supported | JPG,BMP,DXF,PLT,AI,DST |
| Working voltage | AC220V 50HZ, AC110V 60HZ |
| Cooling type | Air cooling |
| Operating parameter | 0-40ºC |
| Warranty | Laser source we warranty for 1 year/the other parts warranty for 2 years |
| G.W. | 90KG |
| Package(L*W*H) | 1090X460X780mm |
Packing list:
| 30W CO2 laser marking machine | 1 set |
| Laser source test report | 1 set |
| CD with EZCAD control program | 1 set |
| Foot switch | 1 set |
| USB flash disk | 1 set |
| Power cord | 1 set |
| Inner hexagon wrench | 1 set |
| Ruler | 1 set |
