Industrial CNC Machine, Milling and Turning for Steel Structures

Product Description

Discover the epitome of precision and innovation with our High Precision Top Selling High Speed Advanced 3/4/5 Axis CNC Milling Machine. Crafted to perfection, this machine offers unmatched versatility and performance for cutting-edge manufacturing needs.
Product Description
Model: TZ-V1165 Introducing our state-of-the-art line rail vertical machining center, a true marvel of technology. This new generation CNC machine tool is meticulously engineered with the latest in ergonomic design, precision manufacturing, and advanced automation technologies. After rigorous simulation analysis and prototype testing, it stands at the pinnacle of innovation, becoming an invaluable asset in medical, UAV, new energy automotive components, precision fixtures, and automation equipment. This powerhouse enables the mass production of high-precision parts with remarkable efficiency, making it indispensable across industries.
Product Parameters

Model		TZ-V640	TZ-V850	TZ-V855	TZ-V1165	TZ-V1270
Worktable size L*W	(mm)	700x420	1000x500	1000x550	1100x530	1200x600
Work table Max. loading	kg	350	400	500	500	600
T-slots size (N×W×D)	mm	3x18x125	5x18x90	5x18x90	5x18x90	5x18x100
X/Y/Z axis travel	mm	600/400/450	800/500/500	800/500/550	1100/650/600	1200/700/700
X/Y/Z axis feed speed	m/min	48/48/48	48/48/48	48/48/48	48/48/48	48/48/48
X/Y/Z axis motor	kw	1.5/1.5/3 kw	2/2/3 kw	2/2/3 kw	2/2/3 kw	3/3/3 kw
X/Y/Z axis roller Guide	mm	30/30/35	35/35/35	35/45/45	35/45/45	45/45/45
Spindle taper		BT40	BT40	BT40	BT40	BT40
Max. spindle speed	rpm	12000	12000	12000	12000	12000
Spindle motor power	kw	7.5	7.5/11	7.5/11	7.5/11	11
Distance from spindle nose to workbench	mm	150-610	120-620	120-670	150-750	140-840
A.T.C capacity	pcs	24	24	24	24	24
Positioning accuracy (X/Y/Z)	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Re-positioning accuracy(X/Y/Z)	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Machine weight	kg	4300	5000	6000	6800	8100
Machine size (L*W*H)	mm	2000*2400*2600	2500*2250*2650	2600*2500*2650	2700*2500*2750	3100*2760*3100

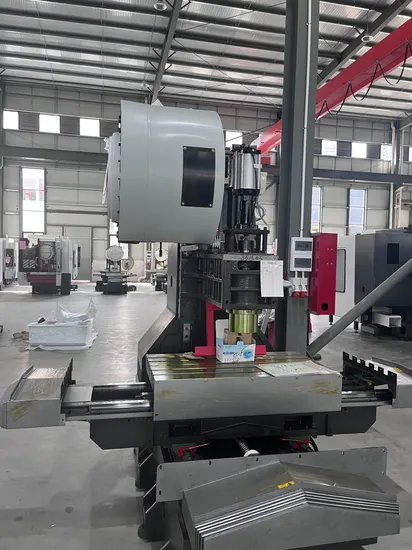

Picture of the machine

Main Parts		Branch/ Origin
CNC System		M80B Mitsubishi/ Japan
Spindle and three-axis servo motor		Mitsubishi/ Japan
Spindle		Dejiu TAIZ/ Taiwan
Ball screw		Yintai or Shangyin/ Taiwan (C3)
Screw bearing		P4NSK/ Japan
Rail		Yintai or Shangyin/ Taiwan (P)
A.T.C capacity		TAIZ or Deda/ Taiwan
Body casting		High density and high strength resin sand cast iron
Coupling		R+W\NBK / German
Electrical components		Franch
Handwheel pulse		East Test/Internal Security Control / Janpan
Pneumatic components		Taiwan AirTAC/ Japan SMC

Anoher Advantages
Benefit from exceptional processing conditions and a production environment that ensures quality and precision. Our facility is equipped with imported horizontal and vertical machining centers, CNC boring machines with rotating tables, and gantry guideway grinding machines. This ensures astonishing workpiece precision, significantly enhancing assembly accuracy and maintaining consistent performance over time.
Cutting-Edge Detection Techniques Employing stringent German VDI3411 inspection standards, our laser-based positioning accuracy tests and precise corrections are conducted five times, ensuring optimal precision.
Every machine tool is subjected to thorough processing tests before it leaves our factory, guaranteeing its ability to meet and exceed real-world processing standards and accuracy requirements.
Product sample
• The CNC machine center seamlessly integrates milling, drilling, and tapping functionalities into one efficient unit. • Experience transformative CNC machining for metal profiles of various sizes, including aluminum, steel, copper, and a wide variety of non-metal materials. • CNC Vertical Machine tools play a crucial role in the 3C electronics, rail transportation, and aerospace industries. They offer unparalleled precision for liner module guide rail applications, setting new standards in manufacturing excellence.and more.
Packaging & Shipping
•Robust Protection
•Unmatched Structural Integrity
•Eco-Friendly and Recyclable
Professional Team
FAQ
1.What's the Payment Terms?
A: T/T, 40% initial payment when order, 60% balance payment before shipment.
2.What is your trade terms?
A:FOB CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 30days. if some special machines will be some longer.You can place order accordingto delivery time and ship time we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
5. What is the package of the machines?
A:The machines standard will be packed in wood case.
6:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

---
