Dt1800t Copper/Brass Extrusion Press Machine

Product Description

Product Description
DT EXTRUSION equipment is suitable for extrusion processing of copper, lithium, zinc, aluminum, magnesium, lead and other metals and their alloys, and can produce various building profiles, industrial profiles, vehicles and aviation profiles.

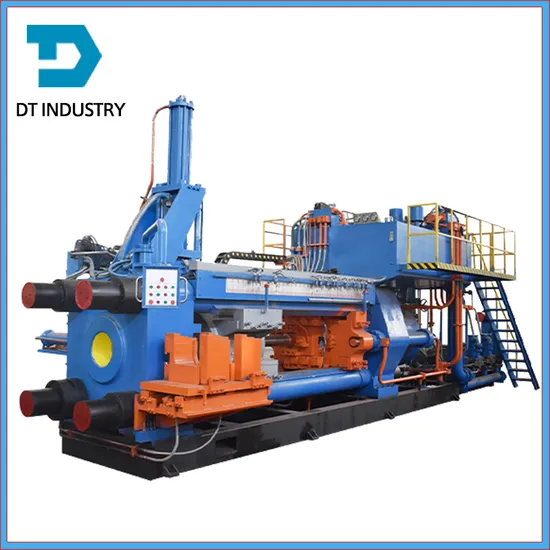

1800T Single-action extrusion press machine

(KW) Total power(KW)	425
(Map)working pressure	26
aluminumbillet size	Φ178mmx1100mm
plunger diameter	Φ900 mm
Main assistant cylinder size	Φ200mm
Container cylinder size	Φ200mm
shear cylinder specification size	Φ200mm
discharge gate size	Φ250mmx290mm
(xx)External measurement size	14000x3850x4500
height of center	1415
die slide specification	Φ380mmX350
oil tank size	7.3
plate heat exchanger	35
the no billet time each cycle	20s
()total weight	130

Product Parameters

Model No.	DT 600T (660UST)	DT 800T (880UST)	DT 1000T (1100UST)	DT 1250T (1375UST)	DT 1400T (1540UST)	DT 1650T (1800UST)	DT 1800T (2000UST)	DT 2000T (2200UST)	DT 2500T (2750UST)	DT 3000T (3300UST)	DT 3600T (4000UST)
Total power (KW)	85	170	170	265	270	390	425	510	610	650	1050
Working pressure (Map)	21	21	21	26	26	26	26	26	26	26	26
Billet size	Φ90mm x500mm	Φ110mm x600mm	Φ120mm x660mm	Φ140mm x800mm	Φ150mm x850mm	Φ178mm x1000mm	Φ178mm x1100mm	Φ203mm x1100mm	Φ230mm x1200mm	Φ254mm x1200mm	Φ320mm x1350mm
Plunger diameter	Φ580mm	Φ650mm	Φ750mm	Φ750mm	Φ800mm	Φ870mm	Φ900 mm	Φ950mm	Φ1060mm	Φ1180mm	Φ1350mm
Main assistant cylinder size	Φ140mm	Φ180mm	Φ180mm	Φ200mm	Φ180mm	Φ200mm	Φ200mm	Φ220mm	Φ250mm	Φ250mm	Φ280mm
Container cylinder size	Φ140mm	Φ150mm	Φ160mm	Φ180mm	Φ160mm	Φ200mm	Φ200mm	Φ220mm	Φ200mm	Φ250mm	Φ280mm
Shear cylinder specification	Φ140mm	Φ140mm	Φ160mm	Φ160mm	Φ160mm	Φ200mm	Φ200mm	Φ200mm	Φ220mm	Φ250mm	Φ280mm
Discharge gate size	Φ120mm	Φ150mm	Φ160mm X190mm	Φ180mm X210	Φ220mm X240	Φ250mm x280mm	Φ250mm x290mm	Φ280mm x320mm	Φ320mm x400mm	Φ320mm x420mm	Φ480mm x580mm
External measurement	6000 x2500 x2700	7500 x3000 x3500	7500 x3000 x3800	8500 x3000 x4000	10000 x3000 x4000	12000 x3800 x4500	14000 x3850 x4500	15000 x4500 x5500	16000 x4800 x6000	16500 x4800 x6000	20500 x6530 x8040
Center height	935	1055	1185	1225	1240	1390	1415	1570	1400	1460	1630
Die slide specification size	Φ200mm X200	Φ240mm X220	Φ255mm X235	Φ320mm X255	Φ350mm X300	Φ360mm X340	Φ380mm X350	Φ450mm X400	Φ500mm X450	Φ550mm X510	Φ650mm X650
Oil tank size	2.8	4	4.3	5.2	5.6	6.6	7.3	9.3	11.5	11.5	20
Plate heat exchanger	12	20	25	25	30	30	35	50	50	50	50
Non-extrusion time each cycle	16s	18s	18s	18s	18s	20s	20s	24s	25s	25s	26s
Total weight	25	38	51	65	83	115	130	160	250	270	400

Main features
I. Host part:
* The main components such as the main cylinder block and front beam are made of high-quality cast steel
* The main plunger is cold cast iron, the piston rod surface is plated with hard chrome, fine grinding, small roughness.
* The tension column is 45# steel cast and tested by flaw detection.
* The oil cylinder of shearing mechanism is inverted, stable and durable.
* Mold change cylinder for direct push type, easy operation and maintenance.
* Locking cylinder stroke can be extended, suitable for extruding seamless aluminum tube.
* Extrusion rod, extrusion tube special quenching process, effectively prolong the life of extrusion tools.
* Ingot supply cylinder external, stable and reliable.
* Flat guide rail structure, adjustable center of movable beam, easy to calibrate machine extrusion center.
II. hydraulic part:
* The system adopts high and low pressure separate configuration, differential connection, with fast response, quick and smooth action, and effectively extend the service life of the main valve.
*XC-1250T and above series aluminum extruder hydraulic system points:
i. Control system of traditional slide valve
ii, disassembly valve (VC valve system), users can choose according to their different requirements
* Proportional valve, servo valve can be added, so that the system can realize speed regulation, pressure regulation, constant speed extrusion, to meet the special extrusion process requirements.
* Imported sealing parts for high pressure, less oil leakage.
III. electric control part:
* Main motor adopts 6 pole horizontal structure, greatly prolongs the service life of pump.
* Imported programmable logic controller (PLC) control.
* The operation panel is set manually, semi-automatically/automatically, reflecting the humanized design concept.
* Imported key components for strong and weak current.
Detailed Photos
Our Advantages
Making a perfect proposal for your production line;
Designing the suitable machines based on your requirements;
Manufacture machines you need;
Inspecting, packing, uploading and shipping service;
Offering all related auxiliary machines, spare parts and consumable tools;
Installing and adjusting machines on site and technology training your labors for operation;
Trial production on site till everything is going well;
On-site technology support if customer needs.
24 hours service online before sales and after sales.
Company Profile
Guangzhou DT Export and Import Co., Ltd was established in Guangzhou in 2012, we are an industrial and trading company special for Furnace and related machineries for Level continuous casting production line, Upwards continuous casting production line, they are casting machineries, cutting machineries, peeling machineries, straightening machineries, and combined drawing machineries and all other related metallic processing machineries. Our foundry is about more than 5000 square meters, and more than 100 employees who are in search and development team, overseas sales and service team, technology support team. Our factory passed ISO 9001: 2008. And Presented Audited supplier by SGS-CSTC since 2013.
Our advantages: Qualified Machines; Professional technology, Efficient Service, Worry-free Guarantee.
Our Values: Products as the fundamental, Customers as the center, Create a win-win situation.
