| 1 | (Total length(bucket at ground) | 6450±80mm | |
| 2 | ()Total width (Outer edge of tire) | 2550±20mm | |
| 3 | (Bucket width) | 2490mm | |
| 4 | ()Total height (cabin top) | 3120±10mm | |
| 5 | ()Total height (digging boom top) | 3940 ±20mm | |
| 6 | (Wheel base) | 2335±10 mm | |
| 7 | (Wheel tread) | 2139 ±10mm | |
| (Load main technical parameter) | |||
| 1 | ( Rated load) | 2500KG | |
| 2 | (Operating weight) | 10050kg | |
| 3 | (Rated bucket capacity) | 1.2m³ | |
| 4 | (41°)Max. Dumping height (41° dumping angle) | 3050±50 mm | |
| 9 | ( Dumping distance) | 870±20 mm | |
| 10 | (Turning radius) | 5750±50mm | |
| 11 | ( Tires outside) | ||
| Digging main technical parameters) | |||
| 1 | (Rated digging bucket capacity) | 0.3m³ | |
| 2 | (Max. Digging depth) | 3820±20 mm | |
| 3 | ( Max. Digging radius) | 5345±20mm | |
| 4 | ( Max. Loading height) | 3740±20mm | |
| 5 | ( Max. Digging force) | 5100kgf | |
| 6 | ( Max.Digging height) | 5470 ±20mm | |
| 7 | (Lifting force at Max. Digging radius) | 1220kg | |
| 8 | (Telescopic arm) | 5213±20 mm | |
| 9 | (Telescopic arm) | 4840±20m | |
| 10 | (Telescopic arm) | 6510±20mm | |
| Engine | |||
| 1 | (Engine model) | YC4A105Z-T20 | |
| 2 | (Cooling type) | Water cooling) | |
| 3 | (Rated power) | 75 (kW) | |
| 4 | (Displacement) | 4.8(L) | |
| 5 | ( Rated speed) | 2200(r/min) | |
| 6 | (Max. Torque) | 400(N.M) | |
| 7 | ( Manufacturer) | YUCHAI | |
| Transmission | |||
| 1 | Hydraulic torque convertor | ( Model) | 315 |
| (Cooling way) | Pressured oil circle | ||
| 2 | (Gearbox) | (Model) | 28 |
| (Type) | Mechanically Operated Hydraulic Synchronized Shift | ||
| 3 | (Driving axles) | l Model) | WZL100 |
| 4 | (Gear shift) | 4 F, 4 R Forward 4 Backward 4 | |
| Speed(F/R)km/h | Forward1) 1 - 5 km/h Forward2) 2 - 10 km/h Forward3) 3- 18 km/h Forward4) 4- 32 km/h Backward1) 1- 5 km/h Backward2) 2- 10 km/h Backward3) 3- 18 km/h Backward4) 4- 32 km/h | ||
| 1 | Tyres model) | 16.9-28 | |
| 2 | (Hydraulic system ) | ||
| 3 | (Working pump displacement) | 63ml/r | |
| 4 | (Working pump pressure) | 20Mpa | |
| 5 | (Diverter model) | BZZ5-250 | |
| ()Digging attachments(hydraulic hammer) | |||
| 1 | (Rod diameter mm) | 68-70 | |
| 2 | (Working pressure Mpa) | 11-14 | |
| 3 | (mpact frequency) | 500-900 | |
| 4 | Flow scope L/min ) | 25-45 | |
| 5 | kinetic energy KN) | 49 | |
| (Oil capacity) | |||
| 1 | (Hydraulic oil tank) | 125 | |
| 2 | (Fuel tank) | 125 | |

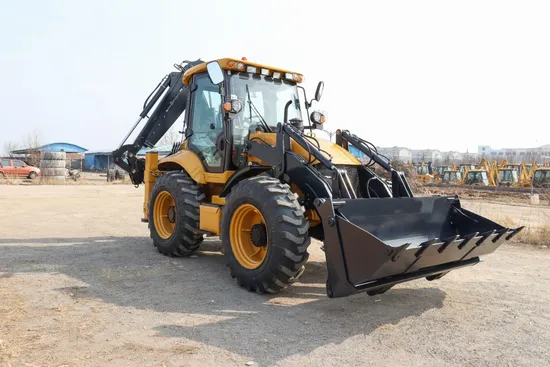

| 388H 388H standard configuration | |||
| 1 | Engine | ()YUCHAI (II2) | |
| 2 | cab | Anti-roll structure | |
| 3 | air conditioner | , Have,Mechanical control | |
| 4 | (Gearbox) | SHANMON | |
| 5 | Bridge | SHANMON | |
| 6 | Hydraulic pump | Jinan Quancheng | |
| 7 | Steering gear and priority valve | Jining Eaton | |
| 8 | Breaker pipeline | reserved | |
| 9 | carriage | Hydraulic side shift | |
| 10 | wheel | ,-Four-wheel steering, tire size 16.9-28 | |
