Automatic Crimped Wire Mesh Machine (wire diameter: 0.5-2mm, 2-8mm, 8-16mm)

Product Description

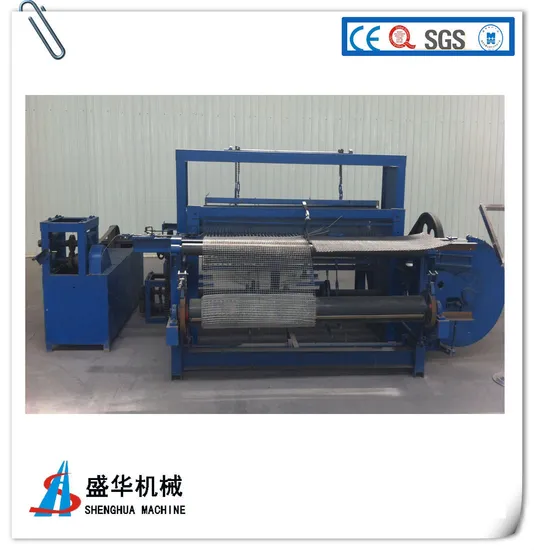

Crimped Wire Mesh Machine
The new crimped mesh machine covers the type of old loom, the function is more than maturity, the standardization eagerly anticipates the wire mesh machinery new tidal current, its perfection manifests below:
1, the designation of outside can compare favorably with 130 shuttles loom, which is made in Japan
2, reform the spare part not be able to use in common, brings the trouble to user
3, create four kinds of weaving, so the crimped mesh machine are used more widely
4, strong, weave precisely
5, the times of shuttle belt is improving greatly (65 times/min)
Type1: full automatic crimped wire mesh machine
Technical parameter:

Wire diameter	0.2-2.0mm
Width	1.0m
Mesh size	0.8-15mm
Outside size	1500*1800*1300mm
Weight	2.8Ton
Spare parts	wire crimping machine,bobbin(30sets),uncoiler for roller,one mold

Type2: full automatic crimped wire mesh machine
Technical parameter:

Wire diameter	2.0-6.0mm
Width	1.0-2.5m
Mesh size	4-150mm
Outside size	3000*2200*1500mm
Weight	3.8Ton
Spare parts	wire crimping machine,bobbin(30sets),control system,one mold,cutter

Type3:semi-automatic crimped wire mesh machine
Technical parameter:

Wire diameter	2.0-8.0mm
Width	1.2.5m
Mesh size	2*2-200*200mm
Outside size	3500*2100*1300mm
Weight	2.8Ton
Spare parts	wire crimping machine,cutter,one mold

Type4: hydraulic crimped wire mesh machine
Technical parameter:

Wire diameter	7-16mm
Width	1.0-2.5m
Mesh size	according mold
Outside size	3200*2400*1300mm
Weight	2.8Ton
Spare parts	wire crimping machine,cutter,control system,one mold

Crimped wire mesh

Packaging & Shipping
Packing: waterproof materials or wooden case(if within spare parts),also as customized.
Shipping: Within 30 days after we receive the advance payment
Our Services
Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,
after this year can offer with the lowest cost.

---
