Chemical Powder V Shape Mixer Machine

Product Description

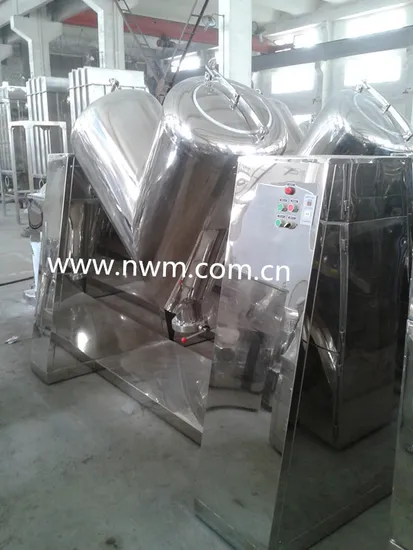

V shape mixer
This mixer is used for mixing the dry power or granules for pharmaceutical and other industries.It's mixed evenly and use widely.
Features:
This machine has unique structure of mixing cylinder,high mixing efficiency, free of dead corner and even mixing.The mixer is made of stainless steel, with inside and outside walls polished. It's widely used and looks beautiful.
Technical parameter:

type	volume(m3)	Capacity (kg/h)	Mixing time (min)	Cylinder speed (r/min)	Power (kw)	Overall dimension(mm)
GHJ-180	0.18	40	6~10	12	1.1	1780×680×1700
GHJ-300	0.3	60			1.1	1880×680×1700
GHJ-500	0.5	100			2.2	2500×1350×2450
GHJ-1000	1	200			4	3055×1650×2700
GHJ-1500	1.5	300			4	3343×1650×2980
GHJ-2000	2	400			7.5	3820×1900×3480
GHJ-2500	2.5	500			7.5	3990×1990×3540
GHJ-3000	3	600			7.5	4690×2200×4000
GHJ-4000	4	800			11	4950×2200×4230

Addition: About the mixing time, because of the different kinds of materials with different elements, quantities, fineness, proportions, the mixing time varies much depending on the clients' practice.

Operation Process
1. make sure the machine is leveled up with the level ruler
2. check the joints of the bolts and screw tightly
3. start it without material first; listen to the sound of the shaft
4. stop the machine and open the cover; fold the cover after charging and screw tightly; set the mixing time and then start the machine up
5. Press the blending button after stopping the machine to make the exit vertical and then open the butterfly valve slowly

---
