High Performance Nylon Mterials Woven Bag Waste Tire Rubber Blocks Single Shaft Shredder

Product Description

High Performance Nylon Mterials Woven Bag Waste Tire Rubber Blocks Single Shaft Shredder
Product Description
Product Introduction
This series is suitable for crushing high hardness, high toughness, strong winding, lightweight solid metal materials, such as aluminum products, injection molding templates, plastic products, machine head materials, rubber head materials, plastic film, nylon materials, waste clothing, tires, wood, etc. The whole machine has stable crushing performance, smooth operation, low noise, high torque, high output, no blockage, adjustable discharge size, and easy operation.
Working Principle

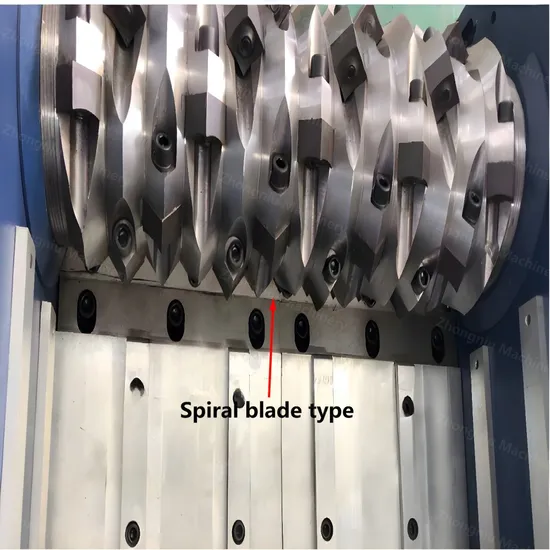

The material enters the shredder through the hopper, and the hydraulic pusher pushes the material towards the cutter roller under the drive of the hydraulic station. The cutter roller is driven by a power system consisting of a motor, a belt, a pulley, and a reducer. The blades adopt a spiral cutting principle to shred the material. The moving blade is fixed to the tungsten carbide cutter roller seat by bolts, and each blade has 4 cutting surfaces. After wear, it can rotate and continue to be used. The gap between the moving blade and the fixed blade can be adjusted by adjusting the bolt. When the equipment is running, the material is shredded by the interaction between the moving blade and the fixed blade, ensuring the uniformity of cutting. The PLC program automatic control system can automatically start and stop, overload automatic reverse control function, reduce the impact load of the spindle, and the shredded material particles are discharged through the sieve. The size of the sieve aperture determines the size of the discharged particles.
Working Conditions
Voltage 200-480V ± 10%, power frequency 50Hz/60Hz (please inform us in advance if there are special requirements for working voltage and frequency) Product Parameters

Model	600	800	1000	1200	1400
Main Motor	22/30KW	45KW	55KW	75/90KW	90/110KW
Hydraulic Pump Station Power	3KW	4KW	5.5KW	5.5KW	5.5KW
Hardened Reducer	Guomao/Tongli H4	Guomao/Tongli H5	Guomao/Tongli H6	Guomao/Tongli H8	Guomao/Tongli H8/H9
Power Control Cabinet	PLC Intelligent Real-time Monitoring System	PLC Intelligent Real-time Monitoring System	PLC Intelligent Real-time Monitoring System	PLC Intelligent Real-time Monitoring System	PLC Intelligent Real-time Monitoring System
Cylinder Stroke (mm)	600	800	1000	1200	1400
Size of Shredder Box (mm)	600*600	800*800	1000*1000	1200*1200	1400*1400
Moving Knife Size (mm)	35*35/40*40	35*35/40*40	35*35/40*40	35*35/40*40	35*35/40*40
Moving Knife Number	36/30	45/38	60/46	72/58	87/62
Blade Diameter (mm)	260	260/300	290/350	290/350	290/400
Rotation Diameter (mm)	300	300/350	320/400	350/400	320/450
Fixed Knife Size (mm)	300*100	400*107	500*120	600*120	480*108
Fixed Knife Number	2	2	2	2	3
Blade Material	D2	D2	D2	D2	D2
Spindle Diameter (mm)	ф140	ф150	ф180	ф180	ф190
Spindle Speed (r)	75-96	75-96	75-96	75-96	75-96
Dimensions (mm)	2234*1324*1810	2800*1663*1990	3257*1904*2200	3746*2166*2450	4143*2440*2990

Detailed Photos
Company Profile
Henan Zhongniu Machinery Manufacturing Co., Ltd. is a high-tech enterprise specialized in the design, development, production sales, installation and after-sales service of large and medium-sized mining equipment.
The main products include: Hubei crusher, impact crusher, cone crusher, Hammer crusher, reversible crusher, hydraulic roller press new-type Sander, bar mil, energy-saving ball mil, European plate mill (European plate rough grinding) , high-pressure mill, Raymond Mill, ultra-fine mil, vibrating screen, feeder, sand washing machine, belt conveyor, etc., the company increasingly becomes the main production and export base of Sand and gravel crushing and pulverizing machinery at home and abroad.
Over the years the company has always insisted on character casting products, service to win the future for the fundamental. With scientific management method, excelsior manufacturing technology, the innovative manufacturing concept has rapidly grown into anew star of china's mining machinery, Product sales network throughout the country, some products exported to Russia, Malaysia,India, Brazil, Kazakhstan, the Middle East, Africa and other countries and regions.
We are full of vigor and confidence. We stand on the thick soil of Central Plain and look around the world. We regard quality as life users as God, and has always followed every process responsible for each product, responsible for each user quality policy, dedicated to customer service. To give me the benefit of the doubt, to give you the satisfaction.
Henan Zhongniu Machinery Manufacturing Co., Ltd.. All staff warmly welcome new and old customers to factory cooperation, visit guidance!
FAQ
Q1.How long is the warranty of your equipment? Does your company supply the spare parts?
A: One year warranty and lifetime after-sales service. Yes, we provide affordable and high-quality spare parts.

Q2.What Information should customers give us, So that we can be able to provide you suitable quotation and service?
A: What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?

Q3.Can you test our samples?Do you provide beneficiation flow chart?
A: Yes. You can send your samples to us for test and analysis. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.

Q4. If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you combine a complete crushing line and give you related professional advice as long as you need. We had already build many mining projects in China & Overseas.
Q5. How long is your delivery time?
A:7-10 days for the stock, 15-30 days for the mass production.
Q6. What is your payment method?
A:There is a 30% deposit in T/T advance and a 70% balance before shipment.

---
