Small Slant Bed Machine CNC Lathe Tck6340 (S)

Product Description

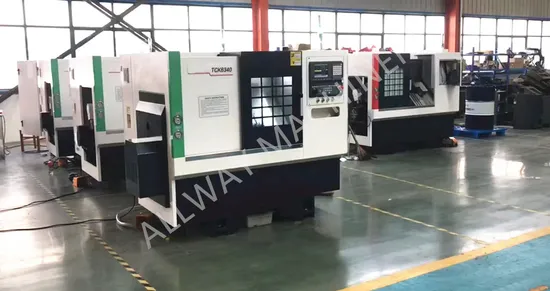

TCK6340(S) SmallerCNC Lathe Turning Center
TCK6340 smaller CNC LATHE USE
This machine is mainly used for processing various shaft, disk parts, turning can be all kinds of screw thread, arc, cone and plane of internal and external surface can satisfy the ferrous and non-ferrous metals the speed requirement of high-speed chip. Suitable for cars, motorcycles, electronics, aerospace industry and other industries to high efficiency, large quantity and high precision of parts processing Machining precision can reach level 7.
TCK6340 smaller CNC LATHE Main Features
45 degrees slant bed CNC lathe;
Higher accuracy Taiwan brand linear guideway;
Chip conveying capacity is large and convenient, customer could choose;
Chip conveying capacity in the back;
Screw pre-stretching structure;
Gang type tool standard ;
Optional turret
Spindle unit has tow types: the heavy cutting type and the high speed type. The first used for bearing and gear processing; The second is suitable for the high speed and hign precessing. Customers could choose any type of them.
TCK6340(s) TCK6340 smaller CNC LATHE

Specifications	Unit	TCK6340(S)
Max.swing over bed	mm	400
Max. Swing over cross slide	mm	140
Max.processing length	mm	200(TCK6340S:400)/ 100(TCK6340S:300)
X/Z axis travel	mm	400/300(TCK6340S:500)
Spindle unit	mm	140/170
Spindle nose		A2-5
Spindle bore	mm	48/56
Diameter of through hole of pull pipe	mm	40/45
Max.spindle speed	rpm	4000/3500
Chuck size	in	6/8
Spindle motor	kw	5.5
X/Z axis repeatability	mm	+/-0.006
X/Z axis feed motor torque	N.m	6/6
X/Z Rapid traverse	m/min	18/18
Tool post type		Gang tool(option:tool turret)
Cutting tool shape size	mm	20*20
Guide form		45 degree slant bed
Total power capacity	KVA	9/11
Machine dimension(L*W*H)	mm	2300*1500*1750
Net.weight(about)	kg	2500

TCK6340 smaller CNC LATHE Optional:
TCK6340 smaller CNC LATHE Packing:
Contact ALLWAY MACHINERY , get more professional information!

---
