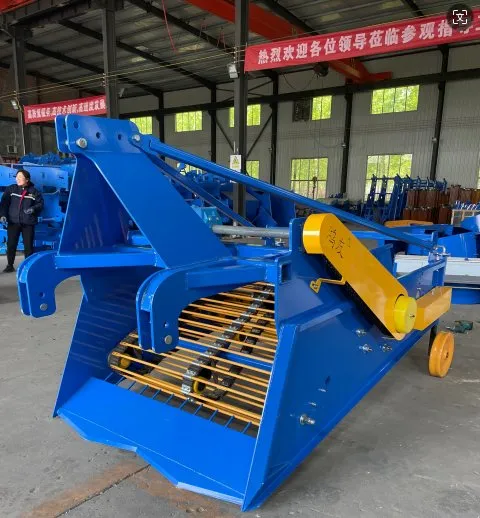

0-400mm Digging Depth Suspended Herb Harvester 4uy-110

Product Description

Product Description
Basic Info.

	4UY-110 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	9	Matched To The Power Output Shaft Speed	540r/min
2	Walking mode	Wheel Type	10	Matching Hanging Width	705mm
3	Working Size (length*width*height)	2760*1380*1370 (adjustable)mm	11	Blade Material	65Mn
4	Transport Dimensions (length*width*height)	2450*1380*1330mm	12	Digging Depth Adjustment Range	0~400mm
5	Overall Weight	650kg	13	Depth Limiting Mechanism Type	Depth Roller
6	Working Width	1100mm	14	Conveyer Type	Double Grid Chain Type
7	Operation Efficiency	Estimated at 0.167 ha/h	15	Conveyor Chain Clearance	75/55mm
8	Supporting Power/Machine Horsepower	80~ 100 (Bridge) Horsepower	16	Chain Bar Material	55CrSi
Note: The values in the specification table are theoretical values, please refer to actual values.

Product Description
Multi-functional receiving herbs receiving machine :
1- High - efficiency operation: Mechanized operation can significantly increase the harvesting speed, greatly shorten the harvesting cycle, and avoid affecting the quality of medicinal materials due to untimely harvesting.
2- Cost reduction: Reduce the number of manual labor and lower the labor cost.
3- Quality assurance: It can precisely control the digging depth and force, reduce damage to medicinal materials, and maintain their integrity.
4- Strong adaptability: It can cope with different terrains and varieties of medicinal materials, such as complex terrains like mountains and hills.

Detailed Photos
Certifications
Packaging & Shipping
Detailed PhotosProduct ParametersPackaging & Shipping

Company Profile
Company Profile
Dezhou Hongyou Agricultural Machinery Co., Ltd.
Dezhou Hongyou Agricultural Machinery Co., Ltd. is located in Ningjin County, Shandong Province, which is known as the "Agricultural Machinery City". Established in 2002, the company has 22 years of processing history and experience, and is a high-tech manufacturer focusing on agricultural machinery products for underground root crops.

Our main products include five series of more than 55 varieties, such as potato harvester machines, mulch film recovery machines, field stone picking machines, ridging and mulching machines, and seeding killer machines.

The company has passed the ISO9001-2008 quality system certification. We will always adhere to the business philosophy of "quality first, customer first", use advanced technology and professional products to make modest contributions to the modernization of agriculture. We sincerely invite partners from all over the country to join us in cooperation and jointly promote the modernization of agriculture, create a brilliant future for agricultural machinery. We warmly welcome both new and old.

We have an old factory area and a new factory area under construction for producing and processing machines. There are finished product stacking area, machine processing area and production workshop. Our Advantages
Customer visit factory

---
